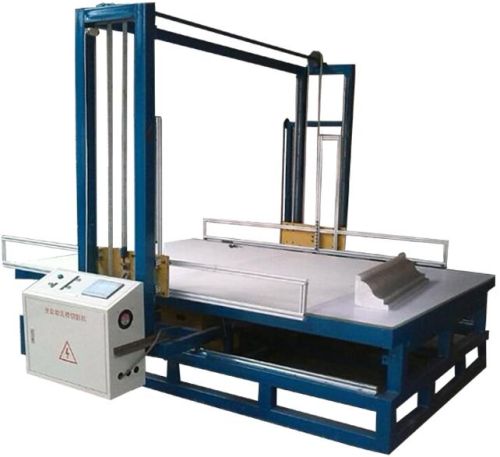

EPS Shape Cutting Machine

We are offering eps shape cutting machine.
-- the mechanical parts of the machine made of rectangular iron pipe and sliding part adopted linear sliding module for motion stability & high precision;
--- machine adopts stepper motor with smooth movement and free speed-regulation, suitable for constantly shifting in special shape cutting;
--- horizontal hanging cutting wire.20 heating wires can be installed and 20 same pattern and word can be cut at the same time;
--- the machine control system adopts pc + touch screen or pc+computer control.it can use draw various graphics by using cadcam on the computer, direct cutting also cutting by file led into touch screen;
--- the machine has a process protection function, also has outage memory,backlash compensation etc.
Technical data:
item （unitmode) epscnc2-2000x1240 epscnc2-3000x3000 epscnc2-4000x4000
maximum cutting size mm 2000x1240x1240 3000x3000x1240 4000x4000x1240
hot wire length mm 2000 3000 4000
minimum cutting thickness mm 0-1240 0-1240 0-1240
cutting speed mmin 0-3.5
frequency control 0-3.5
frequency control 0-3.5 frequency control
hot wire operating numbers at the same time piece 1---20 1--20
1----20
hot wire diameter mm 0.4-0.8 0.4-0.8 0.4-0.8
motor power kw 2.25 2.25 3
transformer capacity kw 8 8 8
control mode auto auto auto
control system auto cad auto cad auto cad
cutting pattern 2d 2d 2d
outline dimensions mm 2500x2000x2500 3500x3500x2500 4500x4500x2500
weight kg 1500 2000 2500
