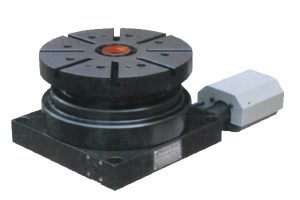

EQUAL INDEXING ROTARY TABLE

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Model HLDB Series equal indexing rotary table adopts the working principle of coupling as fine indexing mechanism. It features high repeatability accuracy, indexing without table lifting, big locking force. It is the ideal product to process equal dividing parts.

View More Details

Send Enquiry

Company Information

DURGA AUTOMATION

Odhav, Ahmedabad, Gujarat

View Number

Member Since 13 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

TECHNICAL DATA

Model	Number of Dividing	Accuracy of divding	Diameter of table	Motor power	Repeatbility Accuracy	Time of Changing tool
Model	Number of Dividing	Accuracy of divding	Diameter of table	Motor power	Repeatbility Accuracy	30°	45°	60°	90°
HLD,-200	4, 6, 8	10-25	200	120	± 2	/	2.0	2.1	2.3
HLDB-240	4. 6. 8	10-25	240	250	± 2	/	2.8	3.0	3.2
HLDB-280	4. 6. 8	10-25	280	250	± 2	/	2.95	3.1	3.4
HLDB-320	4, 6, 8, 12	10-25	320	250	± 2	3.7	3.9	4.1	4.6

DIMENSION CHART

Model	A	B	C	D	E	H	H1	L	Ø	Ø1	Ø2	n	F
HLD8-200	200	140	178	200	178	164	35	395	Ø200	Ø88	Ø13	/	/
HLDB-240	240	168	210	240	210	187	38	532	Ø240	Ø96	Ø18	/	/
HLDB-280	280	250	250	280	250	190	38	572	Ø280	Ø96	Ø18	/	/
HLDB-320	320	286	286	320	286	200	40	612	Ø320	Ø96	Ø18	8	12
