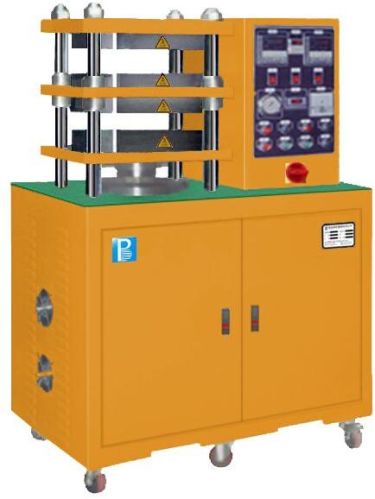

Equipment Lab Hydraulic Tablet Press Machine

lab tablet hydraulic press machine Lab hydraulic tablet press can be used  with detection of material gel (fish eye ), black spot and stain, physical properties test, etc.  The material is placed in the casting mould and clamped between the electric-heating flat plates to apply pressure and temperature, making the material shape, testing and serving as the basis for the ingredient of mass production. Equipment lab hydraulic press machine is equipped with LED indicator, press key set input, the value indicate output. Parameters: Capacity 20/30/50T (optional) Temperature range Normal temperature ~ 300 ℃ Pressing plate size   300 X 300 X 50 mm Distance of pressing plate 70 mm Oil pressure medium Mobil 32# antfreeze hydraulic oil Power supply 3 ∮, five lines Specification: Controller:LED indicator, press key set input, the valueindicate output. Heating method: Electro-thermal tube Cooling method: Tap water cooling Working layer: Two layers. The upper dieplate heating, the lower die plate cooling. Oil pressure system: GPY oil pump driveshigh-performance electric fluid injection and the non-resistance fuel tankcarries out constant speed control mode with the functions of automaticcompensation and time delay stopping
