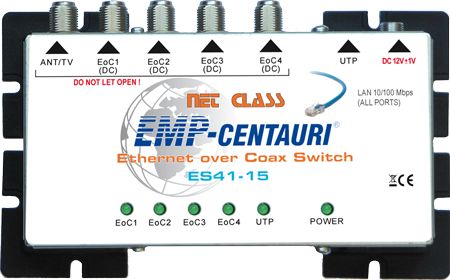

UTP/coaxial ethernet switch, 100 Mbit/s. Provides 1 standard Fast ethernet RJ-45 socket plus 4 coaxial ports (F-sockets) for connection of up to 4 wall sockets. Signals from antenna input are routed to wall sockets along with bi-directional data link. Can supply active antenna with user-selectable 5/12 V. Requires external power supply PA12 (not included in the package). Must be used only with EMP-Centauri NET CLASS wall socket.
Parameter | Condition | Value |
|---|---|---|
Frequency range | TV | 470-862 MHz |
Data | RJ45 (1x) | 10BASE-T (10 Mbit/s), 100BASE-TX (100 Mbit/s) |
F-socket (4x) | 10BASE-T (10 Mbit/s), 100BASE-TX (100 Mbit/s) | |
Insertion loss | TV | 13 dB avg |
Maximum input level | TV | 90 dBµV |
Maximum output level | TV | 77 dBµV |
Current consumption | max. | 500 mA (12 V) |
Dimensions (w,d,h) | -- | 14.8 x 8.9 x 5.4 cm |
Temperature range | -- | -25 ~ +60 °C |
