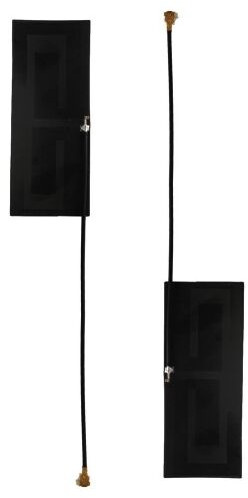

ET-HF5FPC-5L10CP6-U 865MHz 5dBi PCB Flexible Antenna

An 865 MHz 5 dBi PCB flexible antenna is a specialized type of antenna designed for applications that operate around the 865 MHz frequency range, often used in RFID systems and other wireless communication technologies. Here’s a breakdown of what this type of antenna entails:

Features:

• Frequency Range: Tuned specifically for the 865 MHz band, which is common in UHF RFID systems in certain regions (e.g., parts of Asia).
• Gain: 5 dBi (decibels isotropic) indicates a moderate level of gain. This means the antenna is designed to enhance the signal strength compared to a theoretical isotropic antenna, offering a good balance between range and coverage.
• PCB (Printed Circuit Board): The antenna is built on a PCB, making it a compact and durable option suitable for integration into various electronic devices.
• Flexible Design: The antenna is flexible, which allows it to be bent or shaped to fit into various enclosures or mounting configurations. This can be particularly useful in applications where space is constrained or where a rigid antenna would be impractical.

Applications:

• RFID Systems: Ideal for use in UHF RFID readers and tags, especially in regions where 865 MHz is the standard frequency.
• Wireless Communication Devices: Can be used in other wireless devices operating within the same frequency range, such as certain IoT (Internet of Things) applications.
• Portable or Embedded Devices: The flexibility of the antenna allows it to be used in portable devices or embedded into products where a rigid antenna might not fit.

Installation Tips:

• Mounting: Since it’s a flexible PCB antenna, it can be mounted in a variety of orientations and positions. Ensure it is positioned where it can receive and transmit signals effectively, considering any obstructions or interference.
• Orientation: The performance of the antenna can be affected by its orientation. Follow any specific guidelines provided by the manufacturer for optimal placement.
• Connections: Ensure that the antenna is connected properly to the RF circuitry of your device. The connection should be secure to avoid signal loss or degradation.

Considerations:

• Environment: While flexible, ensure the antenna is protected from extreme environmental conditions that could affect its performance or longevity.
• Integration: When integrating the antenna into a device, consider the overall design and how the antenna’s placement will impact signal quality and coverage.
