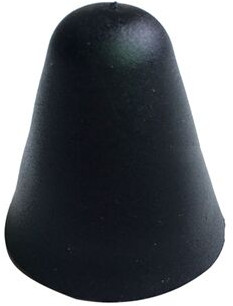

Eteily 2400~2500MHz ET-WI3U-SMS Wi-Fi 3dBi Umbrella Antenna

A 3dBi umbrella antenna is a specific type of antenna designed for wireless communication with a focus on providing a moderate level of gain and a broad radiation pattern. Here’s a detailed breakdown of its features and applications:

Key Features:

1. 3dBi Gain:

   • Gain: The 3dBi rating indicates the antenna’s gain relative to an isotropic radiator. A 3dBi gain provides a moderate improvement in signal strength and is a step up from lower-gain antennas but not as high as those with more gain. It strikes a balance between coverage area and signal strength.
   • Performance: This gain is suitable for a variety of applications where moderate performance is adequate. It’s often used in scenarios where high gain is not essential but improved signal quality is needed over a larger area.

2. Umbrella Design:

   • Shape: The term “umbrella” refers to the antenna's shape, which is typically characterized by a round, or sometimes slightly conical, radiation pattern that resembles an open umbrella. This design helps to provide a relatively even signal distribution around the antenna.
   • Radiation Pattern: Umbrella antennas are designed to radiate signals in a 360-degree horizontal pattern, making them effective for omnidirectional coverage. They are often used in situations where broad coverage is necessary.

3. Construction:

   • Material: Umbrella antennas can be made from various materials, including metal or plastic, and might include elements like a metal rod or disc for the actual radiating element. The construction usually involves a base that connects to the device and a radiating element that extends outward.
   • Mounting: These antennas can be mounted in various ways, including as external antennas on devices or as part of an integrated system.

Applications:

• Wireless Networking: Used in Wi-Fi routers and access points to provide broad, omnidirectional coverage within a given area.
• Telecommunications: Suitable for general communication purposes where wide coverage is desired, such as in base stations or repeater systems.
• Consumer Electronics: Found in devices like wireless speakers, home automation systems, and other gadgets that benefit from a wide signal coverage pattern.

Benefits and Limitations:

• Benefits:

  • Omnidirectional Coverage: The umbrella design provides even coverage in all horizontal directions, making it effective for general use where signal needs to be distributed evenly.
  • Moderate Gain: The 3dBi gain provides a good balance between coverage area and signal strength, suitable for most indoor and some outdoor applications.
  • Versatility: The umbrella antenna can be used in various scenarios where broad, uniform coverage is needed.

• Limitations:

  • Range: While 3dBi gain is moderate, it may not be sufficient for applications requiring extended range or higher performance. For long-range needs, antennas with higher gain might be more appropriate.
  • Vertical Coverage: The umbrella antenna is typically optimized for horizontal coverage. Its vertical coverage might be less uniform compared to other types of antennas, which could affect performance in certain setups.
