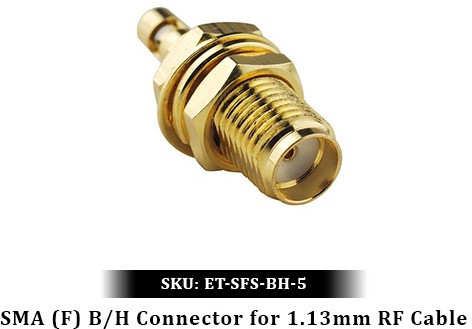

Eteily SMA (F) B/H Connector For 1.13mm RF Cable

The SMA (Female) Bulkhead Connector for 1.13mm RF Cable is a high-performance connector designed for use in RF (Radio Frequency) applications. This connector allows for a secure and reliable connection to RF cables, specifically those with a 1.13mm diameter, commonly used for high-frequency signal transmission in various electronic systems.

• Connector Type: SMA Female Bulkhead
• Application: Designed for use with 1.13mm diameter coaxial RF cables.
• Gender: Female (receptacle)
• Mounting Type: Bulkhead (panel-mounted)
• Polarity: Standard (Non-Reverse Polarity)

1. Connector Design:

   • The SMA Female Bulkhead connector is designed to provide a reliable connection and can be mounted on a panel or chassis. This makes it ideal for applications where the cable needs to be accessed from outside a housing or enclosure.

2. Compatible Cable Size:

   • This connector is specifically designed to work with 1.13mm RF cables (typically a small, flexible coaxial cable used for high-frequency applications). The precise fit ensures minimal signal loss and optimal performance.

3. Material and Construction:

   • Body Material: Typically brass, which ensures durability and reliable signal transmission.
   • Plating: Gold plating for enhanced conductivity, corrosion resistance, and long-term reliability.

4. Mounting Type:

   • Bulkhead Mount: The connector is designed for easy integration into panels or enclosures. The bulkhead mount allows for a secure, stable connection while also providing a clean, flush appearance on the exterior.

5. Applications:

   • RF Equipment: Commonly used in wireless communication systems, RF test equipment, GPS systems, and antennas.
   • Enclosures & Panels: Ideal for situations where a cable must pass through a panel or other housing and be securely fastened.

6. Frequency Range:

   • This connector is designed to perform optimally at high frequencies (up to several GHz), making it suitable for advanced RF communication systems and precise applications that require low signal loss and high fidelity.

The SMA Female Bulkhead Connector for 1.13mm RF Cable is a compact, reliable, and highly efficient connector designed for use in RF systems, offering ease of integration and high performance. Whether used for panel-mounted RF systems or precise communication applications, this connector ensures a stable and durable connection, making it ideal for both prototyping and long-term use in professional applications.
