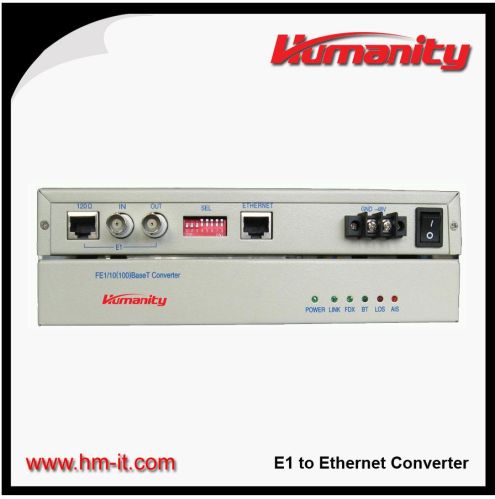

humanity hm-c108a e1 to ethernet converter realizes ethernet transmission over fractional or un-fractional e1 at the bandwidth of 64kbps~2048kbps.
technical parameters
e1 interface
rate: 64kbps to 2048kbps
line code: hdb3
electric characteristic: comply with itu-t g.703 standard
jitter index: comply with itu-t g.823 standard
interface impedance: 75ω unbalance and 120ω balance
connector: bnc for 75ω and rj45 for 120ω
ethernet interface
data rate: 10/100mbps auto-negotiation
auto adapt mdi/mdix
interface mode: full/half duplex
frame length: 60-2024bytes
connector: rj-45
indicator light pwr for power
link, fdx, bt for ethernet
los, ais for e1
dip switch
dip sel1 = unframe/frame option switch.
On=transparent mode (e1) off=time slot mode(fe1)
dip sel2 =timing mode of e1 output
on=local timing off=recovery timing
dip sel3=pcm30/31 mode configuration (valid under time slot mode)
on=pcm31 mode off=pcm30 mode
note: both converter at the both sides must be under the same mode
dip sel4-8=time slot setting switch: adopt binary system. (valid under time slot mode)
on stand for‘1’，off stand for‘0’。
sel:4 means highest，sel:8 means lowest
i.e.:
sel:4=off sel:5=off sel:6=on sel:7=on sel:8=on
setting as above means that ethernet data use 1~7 time slots
note: time slots of both converter must be set as the same under time slot mode
power supply:voltage: ac220v or dc-48v
environment:operating temperature: 0°c~50°c
dimension:220×175×35mm
