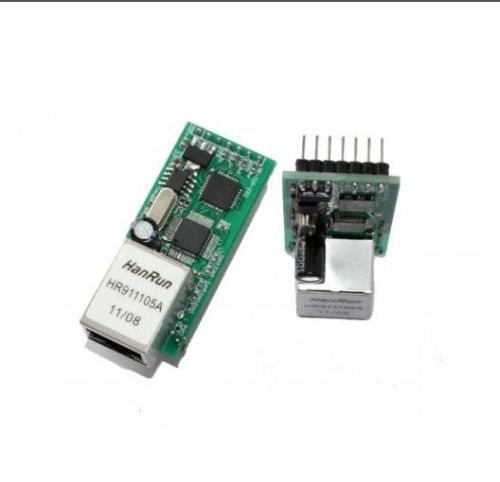

Ethernet Converter Tcp IP Module - (ttl Serial Rs232)

Description:
RS232 serial to ethernet converter tcp ip module is a multifunctional embedded Ethernet serial data conversion module, which integrates a TCP / IP protocol stack, the user can easily use it to complete the networking of embedded devices, saving human and material resources and development time, to make products more faster to market, enhance their competitiveness
Offering flexibility, high performance and advanced RS232 to Ethernet adapter technology, USR-TCP232 modules are ideal for applications and devices that require an efficient way of communicating with serial RS232 devices over an Ethernet network
Features:
1.10/100M Auto adaptive Ethernet interface, 2KV Protect inside
Based on 32 bit ARM
2.RS232 band rate from 110 to 256000 bps
Support AUTO MDI/MDIX, you can use Crossover cable or parallel cable connection
3.Work mode UDP and TCP client ,TCP Server
4.Support virtual serial COM port mode
5.Working port, target IP address and port can be easily set up
6.Auto connect if connection break detected
7.Two Power port,VDD 4.5~5.5V, VCC 3.3V
8.Agreement: ETHERNET, ARP, IP, UDP, TCP
9.Ethernet: RJ45 port x 1
10.COM port: TTL x 1, TXD RXD GND
11.Set up via RS232 , supply free software and Communication protocol
12.Supply free software for TCP/IP socket programming
13.Module size(LxWxH): 55x23x23(mm) with network port and pin
14.PCB size(LxW): 50.4x22.6(mm)
15.Module Current: 180 mA max
16.Operating temperature: -25 ~ 75 °C
17.Storage temperature: -40 ~ 85 °C .
