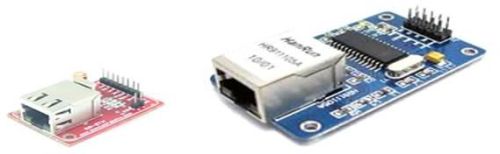

The ENC28J60 Ethernet Module utilizes the new Microchip ENC28J60 Stand-Alone Ethernet Controller IC featuring a host of features to handle most of the network protocol requirements. The board connects directly to most microcontrollers with a standard SPI interface with a transfer speed of up to 20MHz.
This Ethernet Module is simplest way to add LAN connectivity to your microcontroller board Use this module to enable Ethernet interface for your projectproduct. It works with any microcontroller operating at 3.3V or 5V. This module works at 3.3V and is compatible with 5V interface lines. Use SPI process to interface with it. Host web server, ping the module or add it to home automation via internet. Heart of this module is ENC28J60 Ethernet controller from Microchip. Use of RJ45 with Integrated magnetic has made it possible to reduce the size of board.
ENC28J60 Ethernet chips, SOP28 package
SPI Interface
1x10 connector, can be easily mounted with the MCU
Built-in isolation transformer RJ45 connectors HR911102A
Power LED
Single Supply: +3.3 V
25Mhz Crystal
PCB size: 55x36 mm
