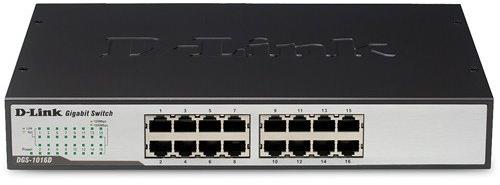

D-Link Ethernet Switch

₹ 6,500 / Piece

Product Details

Brand NameD-Link
Maximum Power Consumption10.07 W
Number of Ports16 10/100/1000 Mbps ports
Operating Temperature40 Degree C
Maximum Heat Dissipation34.3 BTU/h
Model NumberDGS1016D
MTBF1,882,372 hours
AC Inputs100~240 V AC; 50 to 60 Hz,0.2 A max
DIP SwitchEnergy-Efficient Ethernet (EEE)
Switching Capacity32 Gbps,48 Gbps
Forwarding ModeStore-and-forward
Packet Buffer RAM512 KBytes per device
Indicator LEDsPower LED (per device)
Acoustic Value0 dB(A) Fanless
QoS802.1p priority,8 queues
Network CablesEthernet 2-pair UTP Cat.3/4/5/5e,Unshielded Twisted Pair (UTP) Cable
Filtering Address Table8K MAC addresses per device
Standby Power Consumption3.02 W
MAC Address LearningSelf-learning,auto-aging
Cable DiagnosticsIndicated through port LEDs
Operating Humidity0% to 95% RH,non-condensing
Max Forwarding Rate23.81 mpps,35.71 mpps
Data Transfer RatesEthernet 10 Mbps/20 Mbps (half-duplex/full-duplex),Fast Ethernet 100 Mbps/200 Mbps (half-duplex/f
Storage Temperature10 to 70 Degree C
SecurityStorm Control
D Link Green FeaturesPower saving by link status and cable length
Dimension280 x 125 x 44 mm (11.02 x 4.92 x 1.73 inch)
Weight1.02 kg (2.25 lbs)
ProtocolCSMA/CD
