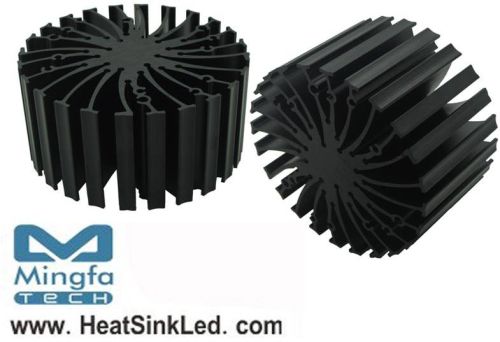

Etraled-lum-8550 Lumi Leds Modular Passive Star LED Heat Sink

Material6063-T5
FinishBlack Anodized
Thermal Wattage34.0W
Weight(gr)286
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Material6063-T5
Thermal Wattage34.0W
Weight(gr)286
SizeΦ85xH50mm
FinishBlack Anodized
HeatsinkΘs-a²36868

We offer etraled-lum-8550 lumileds modular passive star led heat sink.
* the etraled-lum-85 lumileds modular passive led coolers are specifically designed for
luminaires using the lumileds led engines.
* mechanical compatibility with direct mounting of the led engines to the led cooler and
thermal performance matching the lumen packages.
* for spotlight and downlight designs from 1400 to 4400 lumen.
* thermal resistance range rth 1.3~1.5°cw.
* modular design with mounting holes foreseen for direct mounting of lumileds luxeon k and
lueoncob engines.
* diameter 85mm - standard height 50mm other heights on request.
* extruded from highly conductive aluminum.
