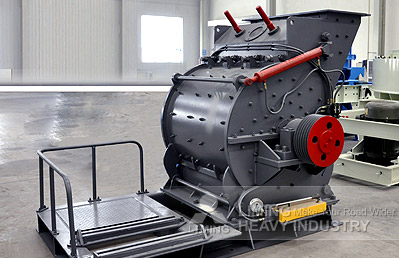

European Coarse Powder Mill

Number Of FlowerMineral Ore Powder Making
Input Size70-100 mm
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The european type coarse powder hammer mill is widely used to crush mineral ores mediumly or finely with compressive stress below 320Mpa in industries like metallurgy, mining, chemicals, cement,....

View More Details

Send Enquiry

Company Information

Akins Interior Solutions

BTM Layout, Bangalore, Karnataka

4.0/5

(1)

View Number

Member Since 14 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

The european type coarse powder hammer mill is widely used to crush mineral ores mediumly or finely with compressive stress below 320Mpa in industries like metallurgy, mining, chemicals, cement, construction, refractory, ceremic, etc.
Features
1. big crushing ratio and large capacity;
2. Low consumption and even granule;
3. simple design and compact structure;
4. modest investment and easy management.
Working Principle
This european type coarse powder hammer mill is consisted by the steel frame, rotor, blow bar, grizzly screen, etc. The upper part and lower part of steel frame are firmly welded, while other parts are connected by the bolts. With the high manganese steel liner which is easily changed if it is worn out, the steel frame is well protected. There are sets of hammers with exactly the same weight installed on the main shaft, and tightened by high-strength bolts. When it works, the motor drives the main shaft and rotors on it to rotate through V-belts. The bulk of materials will be fed into crushing cavity through inlet, and get hitten and crushed by rapidly moving hammer. Then the stone small enough to be discharged through the grizzly screen will be collected as final products, the rest would be stucked in the crushing cavity and be crushed again and again. To avoid clogging, moisture content of the material should be below 20%.
Processed Materials :
Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, manganese ore, quartz, active carbon etc. .
Applications :
Cement, coal , power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.

Name	Parameter		Remark
Name	Model	Power	Remark
Model	MSB1004
Roller quantity	4pcs
Max. feeding size	<30mm		Too hard material<20mm
Product size	70-90%<2mm		Adjustable, check below
Capacity	8-15ton/hour		Relative to average size and hardness of feeding material
Main motor power	37-45kW		Use small motor if use fine material and want low capacity
Main motor Model	Y2-225M-4		45 kW
Overall size（L×W×H）	1.87×1.5×2.58(m）		Including main motor, decelerator and main unit
Largest single pc weight	900kg
Total weight（excluding electricity control cabinet）	8ton		Decelerator weight 1.7 ton
Jaw crusher of fine crushing	PEX150×750	15kW
Bucket elevator	TH250	3kW	Speed≥1.2m/s
Electromagnetic Vibrating feeder	GZ3	0.2kW	Distance between inlet and outlet 1000
