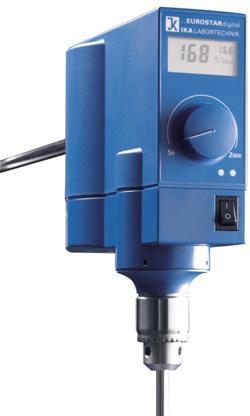

Eurostar Digital

Stirring quantity max. (H2O) 20 l
Motor rating input 75 W
Motor rating output 55 W
Speed display LCD
Speed range 50 - 2000 rpm
Viscosity max. 10000 mPas
Output max. at stirring shaft 53 W
Permissible ON time 100 %
Torque max. at stirring shaft 30 Ncm
Torque max. at stirring shaft at 60 1min (overload) 30 Ncm
Torque max. at stirring shaft at 100 1min 30 Ncm
Torque max. at stirring shaft at 1.000 1min 30 Ncm
Speed control stepless
Stirring element fastening chuck
Chuck range min. diameter 0.5 mm
Chuck range max. diameter 10 mm
Hollow shaft, inner diameter 11 mm
Hollow shaft (push-through ¿ when stopped) yes
Fastening on stand extension arm
Extension arm diameter 13 mm
Extension arm length 160 mm
Torque display no
Nominal torque 0.3 Nm
Dimensions (W x H x D) 80 x 222 x 190 mm
Weight 2.8 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative moisture 80 %
Protection class according to DIN EN 60529 IP 42
RS 232 interface no
Analog output no
Voltage 230 115 100 V
Frequency 5060 Hz
Power input 75 W
