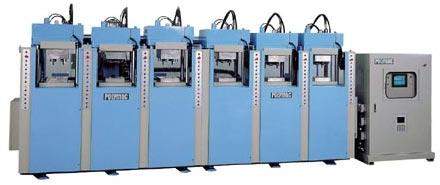

EVA Shoes Injection Molding Machine

Supply TypeManufacturer
Preferred Buyer Location All over the world

Our innovative EVA Shoes Injection Molding Machine is more advanced having mature technology to reach higher level of standard. The EVA Shoes Injection Molding Machine brings the benefits of much....

View More Details

Send Enquiry

Company Information

Polymac Machinery Co. Ltd.

Taiwan

View Number

Member Since 18 Years
Nature of Business Manufacturer
Year of Establishment 1987

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Our innovative EVA Shoes Injection Molding Machine is more advanced having mature technology to reach higher level of standard. The EVA Shoes Injection Molding Machine brings the benefits of much easy operation, simple maintenance, high productivity, and long term usage life, etc. We are a famous EVA Shoes Injection Molding Machine Manufacturer, Exporter, and Supplier in Taiwan (Taichung). Features

Linear type, toggle clamping system
High technology isolation plate design for energy-saving
Protector guard-safety door device + safety bar
Best security proof
Efficient vacuum system. High utilization and help finished products quality's insurance.
Has advanced programmable operation display system control panel with touch screen
High precision and easy management
PID temperature control system for injection unit and heating plate. Accurate temperature control and excellent production.
Toggle mechanism system providing rapid mould opening movement.
Superior hydraulic circuit design for power saving.

Technical Specifications

Model	P988-X3	P988-X4	P988-X6
Material	EVA	EVA	EVA
Number of injectors	1	1	1
Work Stations / stations	3	4	6
Diameter of Screw / mm	70	70	70
Each Max. Injection Capacity / cc	1260	1260	1260
Injection Pressure / Kg/cm²	660	660	660
Rotating Speed of Screw / R.P.M.	0-110	0-110	0-110
Temperature Control / sections	4	4	4
Mold Close Pressure / TON	150	150	150
Mould Size / mm	350 x 500	350 x 500	350 x 500
Hydraulic Motor / HP	25	25	25
Opening stroke / mm	285	285	285
Running Power Consumption / KW	25	25	25
Total power consumption / KW	52.9	63.7	74.5
Control Panel	PLC Control with Programmable operation display(touch screen)	PLC Control with Programmable operation display(touch screen)	PLC Control with Programmable operation display(touch screen)
