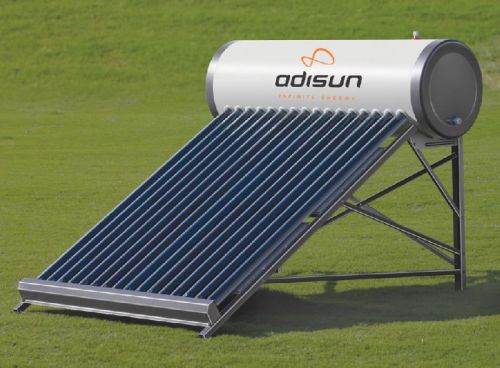

Evacuated Tube Collector

This solar heater is designed by advanced technology i.e. tried & tested in the international market. The water heater is made from world class material that not only ensure longer life but also overcomes the adverse climatic conditions in Asia.

• High Heat Convergence
• Vacuum Tubes: These vacuum tubes have been designed with a borosillicate Glass, giving it better stroke resistance.
• The well synchronized aluminum, nitrogen & carbon planting which effectively absorbs solar energy up 93%.
• 304 SUS Stainless steel/GI inner tank with puff insulation, automatic argon arc welding equipment prevents chemical reaction in joints ensuring contamination Free water.
• 55 mm thick polyurethane thermal material acts as an excellent protection against dampness, high temperature and aging. The high performance foaming also offers better integration between the inner tank and outer shell it also maintains the water temperature during cold season.
• Specially made for hard water.

• Water tank material(inside): SUS304 2B stainless steel/GI.
• Water tank material(outside): SUS304 2B stainless steel/GI.
• Insulation 50-70mm polyurethane integral foam.
• Frame material: stainless steel, aluminum alloy or zinc coated steel.
• Temperature(sunny season): 40-96 °C/day
• Whole glass vacuum tube adopt supper hard borax and silicate glass.
• Absorb rate 93%, thermal radiation rate: 0-6%
• Resist 25mm hail, using life can last 15 years.

• Homes
• Hospitals
• Hostels
• Hotels
• Farm houses
• Industries
• Laundries
• Swimming pool
