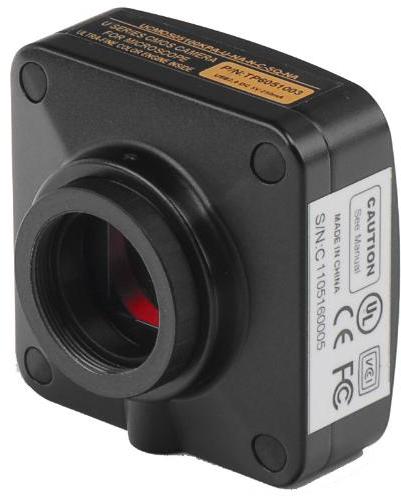

Sensor model: sony icx285aq
scan mode: progressive
max. Resolution: 1360x1024 (approx. 1,400,000 pixels)
sensor size: 2/3 (10.2mm(h) x 8.3mm(v), diagonal 11mm)
pixel size: 6.45µm x 6.45µm
g sensitivity: 1240mv with 1/30s accumulation
dynamic range: 70db
a/d converter: 12-bit parallel, 8-bit r.g.b to pc
sn ratio: 62db
spectral range: 400-650nm (with ir-filter)
frame size and rate: 15fps @1360 x 1024(multiple speed level)
binning: 1 x 1
exposure: normal exposure: 0.126~66.695ms, roi auto & manual, long exposure: 66.695ms~4mins
color rendering technique: ultra finetm color engine
white balance: one push roi white balance/manual temp-tint adjustment
capture/control api: directshow, twain
capture mode: still picture and video
operating system: microsoft® windows® xp / vista / 7 (32 & 64 bit)
