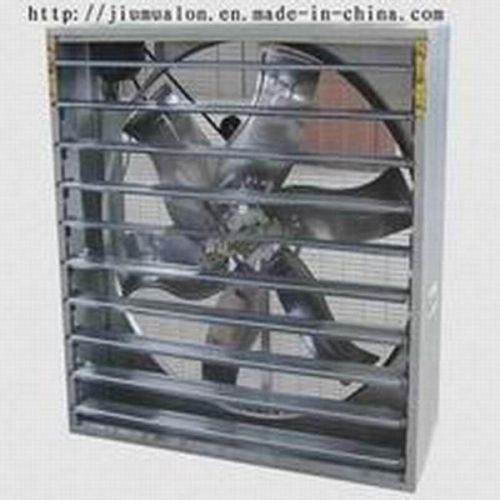

SHM Exhaust Fan, Certification : ISO9001:2000

Detailed Products Description
Size :1380*1380*450 mm
Certificate:ISO9001:2000
Blade/mm :1270(36in) /mm
Motor Speed(r/min):≥1400
Capacity(cubic meters/h):43170m3/h
Power:1.1kw
Voltage:380v
Frequency :50hz
Noise:≦65db
Fan frame: Hot galvanized sheet frame
sheet thickness is 1mm(left and right is 0.8mm)
zink thickness is 275g/m2
Fan blades: Germany-imported mirror face stainless steel ,
Fan blades No:6,
Fan Blade RPM : 460r/min,
Fan blade Thickness:1.2mm,
Fan blade surface finish grade.:BA,
Blades all pass the balance test after assembled, which can assure steady running and even airflow during the operational life span of the life.
Fan motor: the high efficient and energy-saving Simens motor (others motor accordingly ) .
Fan motor protection grade: IP55
Fan motor insulation class:F
Fan Motor technical data is :1.1kw, 380v, 50Hz, RPM is 1440r/min
Fan belts: Japanese Mistoboshi brand
Fan centrifugal system: adopt high quality nylon PA66 to ensure the long service life.
The fasteners of centrifugal system all are copper rivets, wear-resisting and no rust, flexible
Fan shutter: high strength hot-galvanized steel sheet ,
the middle shutter thickness is 1.5mm, others are 0.8mm,
with a centrifugal system which can ensure he shutter opens with the angle of 90 degree under all the condition to ensure the lowest air resistance and biggest air volume .when closing, the sealing can efficiently block light and wind into the poultry farm house.
Free maintenance: The whole use period is all free maintenance
Performance: Cooling pad used together with better effect, it is used for longitudinal ventilation
