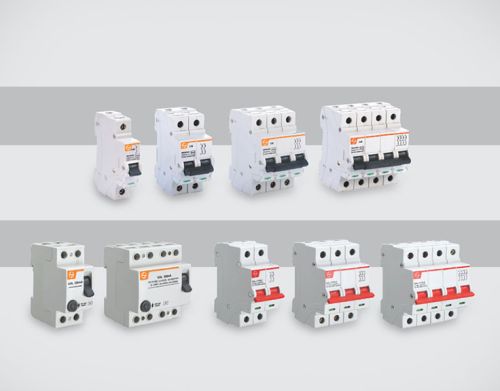

Exora MCB Isolators

features:

• mcbs conform to is/iec 60898 with short-circuit breaking capacity of 10ka throughout the range
• mcbs conforms to iec 60947-2 with short-circuit breaking capacity
  • 15ka (up to 40a)
  • 10ka (50a & 63a)
• dc mcbs conforms to iec 60947-2
  • rated voltage: 130v dc (for sp), 250v dc (for dp) with breaking capacity of 6ka
• true contact indication in mcbs and isolators enhancing safety by reflecting actual contact status
• label holder in mcbs for easy circuit identification
• complete range of rccbs from 25a to 100a with 30ma, 100ma and 300ma sensitivity with isi mark
• isolators available in dp,tp and fp from 40a to 100a with utilization category of ac-22a
• range of controlling and monitoring devices
  • mcb accessories:  auxiliary contact, trip alarm contact, shunt release
