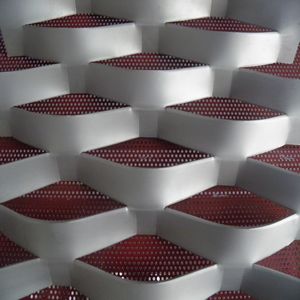

Aluminum Expanded Metal Mesh, Brand Name : dbl

We offer expanded metal mesh

anping huijin wire mesh factory is a leading manufacturer of metal mesh.expanded metal mesh,and perforated sheet are our major products.as well as wire mesh items:chain link fence,hexagonal wire mesh,welded wire mesh,stainless steel wire mesh ,etc.
Material:ordinary low carbon steel sheet, cold-rolled steel, hot-rolled steel, hot galvanized plate, stainless steel sheet, copper sheet , titanium, nickel, aluminum, aluminum alloy panels. Hole can produce a variety of metal mesh, can be flattened after molding process.
Weaving and features:
　　punched and stretched, sturdy and durable with elegant appearance
metal surface:
pvc coated, sprayed, plastic-coated, hot-dipped galvanized, electro galvanized, etc.
Advantages:
we can produce expanded metal mesh with the specifications below:
width: 2m, maximum up to 2.5m.
Thickness: 0.25mm, maximum up to 12mm.
Aperture size 2mm × 1mm (length × short pitch pitch) ---300mm × 100mm. Stem width: 0.5mm--50mm.
The other demands of customers are also available.
The needed specifications:
　swd (short way of the diamond) is the distance from the middle of the bond on one side to the middle of the bond on the opposite side.
Lwd (long way of the diamond) is the distance across the largest dimension of the diamond measured halfway between the diamonds.
Swo (short way of the opening) is the width of the opening of the shortest side of the diamond. Swo does not include the strand width, where swd (short way of the diamond) does.
Lwo (long way of the opening) is the length of the opening of the longest side of the diamond. Lwo does not include the strand width, where lwd (long way of the diamond) does.
Strand and bond expanded metal is composed of strands and bonds. Strands form the sides of the expanded metal openings. Bonds are where the strands intersect. In other words, the bond is where each diamond shaped opening is connected with the next opening.
Thickness is the measurement from the top surface to bottom surface of the expanded metal piece.
