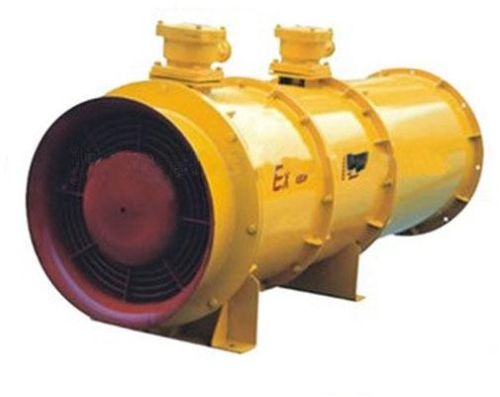

Explosion Proof Axial Fan

We are offering fbd series explosion-proof axial fan for tunnel and coal mine.
(chinacoal08)
keyword:fan,axial fan, fbd series explosion-proof axial fan
fbd series explosion-proof axial fan for tunnel and coal mine

· application:  best choice ventilation fan for under mining coal, deep tunnel  metal mining engineering tunnel

· function:  far distance ventilation,  big power ventilation, low noisy, high efficiency, energy-saving,  various style available

· temperature range:-20°c~+40°c
fbd series explosion-proof axial fan for tunnel and coal mine  feature:
1. The product is composed of explosion-proof motor, vanes, air duct and others;
2. It's in low noise, low consumption and perfect performance;
3. Besides being used for ventilation and exhausting, it also can be installed in series to improve the pressure in pipe;
4. The enclosure material can be armor plate or fiber floss reinforced plastic;
5.wiring with cable.
no. rotatemin motor model power kw pressure( v) dc current (a) air capacity m3min pressure (pa) highest efficiency(%) a sound level(db)
4.0 2900 ybf2-90l-2 2×2.2 380660 4.852.79 136~89 256~2050 ≥75 ≤30
    ybf2-100l-2 2×3 380660 6.43.7 150~100 325~2500 ≥75 ≤30
    ybf2-112m-2 2×4 380660 8.14.7 165~109 375~3040 ≥75 ≤30
5.0 2900 ybf2-112m-2 2×4 380660 8.14.7 217~145 275~2060 ≥75 ≤30
    ybf2-132s1-2 2×5.5 3806601140 11.16.43.7 240~161 325~2540 ≥75 ≤30
    ybf2-132s2-2 2×7.5 3806601140 14.88.664.97 266~178 400~3155 ≥75 ≤30
5.6 2900 ybf2-132s2-2 2×7.5 3806601140 14.88.664.97 286~188 275~2850 ≥80 ≤25
    ybf2-160m1-2 2×11 3806601140 21.612.67.2 324~215 375~3690 ≥80 ≤25
    ybf2-160m2-2 2×15 3806601140 28.817.09.6 400~236 1107~4500 ≥80 ≤25
