| Specifications | ||||
| Rated voltage | 230VAC，250VAC，280VAC，400VAC，415VAC，430VAC，440VAC，450VAC，480VAC，525VAC，690VAC，730VAC，750VAC，1000VAC | |||
| Rated frequency | 50/60Hz | |||
| Capacitance Range | 1~100Kvar | |||
| Class of safety protection | S2 | |||
| Operating temperature range | -25℃~+55℃ | |||
| Capacitance Tolerance | -5%~ +10% | |||
| Volatge Proof | Between Teminals | 2.15Un（10S） | ||
Between terminals And Case | 3500VAC（10S） | |||
| Maximum permissible voltage | 1.1Un | |||
| Maximum permissible current | 1.3In | |||
| Insulation Resistance(IRxC) | ≥3000S（20℃，100V，1min) | |||
| Dissipation Factor | ＜0.25W/Kvar | |||

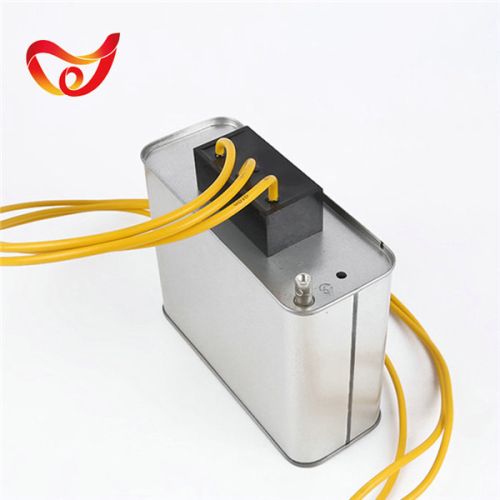

Features： Brand self-healing type low voltage power capacitor made of the advanced metalized film，isproduced strictly in accordance with the foreign techniques and equipments.The device is mainly suitable for low voltage power network to improve power factor,reducreactive loss and better the voltage quality. Self-healing property .Extremely stable performance and high degree reliability. .Anti-explosion design,more safety. | ||||
