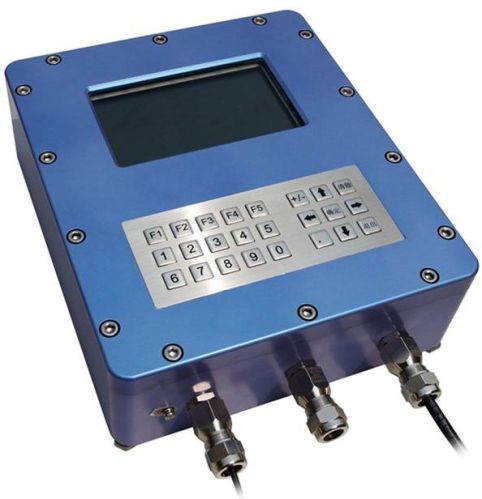

Explosion Proof Human Machine Interface/HMI For Hazardous Locations

MOQ1 Set(s)
Country of OriginDC24V; allowable operating range: DC18~32V
Storage temperatureNormal: -20~60 degree; Wide: -40~80 degree
Rated power consumption5W, max 15W
Loss of electricity allowed<5ms
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Country of OriginDC24V; allowable operating range: DC18~32V
Explosion proof classExd[ib]ibIIBT6
Environment humidity10~90% RH(no condensation)
Loss of electricity allowed<5ms
Power protectionisolated power module with lighting surge protection
Operating temperatureNormal: 0~60 degree; Wide: -40~70 degree
Storage temperatureNormal: -20~60 degree; Wide: -40~80 degree
Electrical interface3*1/2” explosion-proof sealed joints
Rated power consumption5W, max 15W
KeyboardSUS 24~30keys
Serial communication portCOM0/COM1 port: RS232/RS485/RS422; COM2/COM3 port: RS232 (COM0 and COM2 are isolated protection ports)

We offer explosion proof human machine interface/hmi for hazardous locations.introduction
xy600 is a type of explosion proof human machine interface with an intrinsic safety keyboard. The product uses 32-bit risc cpu and a simplified linux kernel, can display a variety of true color graphics formats, and meet the needs of most customers with superior processing speed and rich software features. Xy600 explosion proof hmi has functions including direct and indirect online simulation, large-capacity memory for user to configure and storage programs, and standard c language compatible macro commands, and can perform functions as field data collection, calculation, and control rapidly and effectively, and supports direct communication with various mainstream plcs. It is widely used in mechanical control systems in hazardous locations with explosive gas or dust exists.
features
65536 color tft display, support for import of images in bmp, jpg, gif formats
high-performance 32-bit 400mhz risc cpu with fast processing performance to ensure higher efficiency
powerful xyfd2000 configuration software features and support c language macro script
support profibus-dp, can, mpi bus communication, mpi multi-screen, multi-machine networking
free data exchange between any communication ports
safety: suitable for using in hazardous area with explosive gas or dust exists in zone 1, zone 2.
Technical parameter
display screen: 7”, 8”, 10.4”, 12.1”, 15” tft lcd screen
resolution: 800*480 800*600 1024*768
color: 65536 color
brightness: 300 cdm2
backlight: led
lcd life: 50,000 hours
cpu: 32 bit 400mhz risc arm926ej
memory: 128m flash 64m ddr2 dram
rtc: built-in real-time clock
ethernet: 7”: na according to customer requirements; other size: standard
usb port: 1 usb host 1.1 port, support for u disk memory; 1 usb device 2.0 port, support for usb program download
