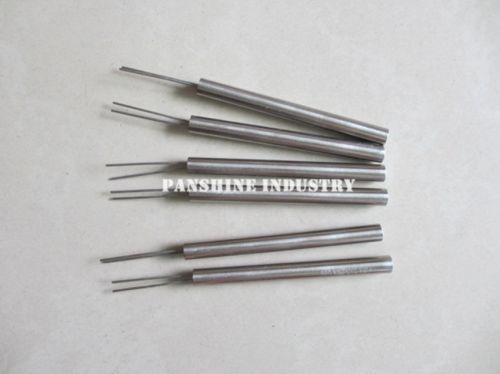

External Cartridge Heater Without Wire

Panshine manufactures kinds of cartridge heater that represent the excellent heat transfer and the steady quality. They are inserted into drilled holes to heat metal parts or small space, offer a convenient and efficient means of heating metal dies platens, molds and more. Most units can also be fitted with threaded bushing for liquid heating applications.
Product feature
advantanges
fast heating and long service life
grade a nickel chromium resistance
high purity magnesium oxide(mgo) powder
different lead terminations
made to customer specification
product specificationmodels
min dia 4mm ; max dia 30mm
min length 20mm; max length 2000mm
available with build-in thermocouple
highly non-corrosive
various watt density option available
even heat, max temperature to 800 degrees celsius
specially selected, high purity magnesium oxide
customer size available
superior life expectancy
bottom end welded with dish washer
choice of terminal exists
special size, wattages and materials are availabe upon request
application
plastic molding
packaging equipment
heating tanks
labeling machinery
air and liquid heating.
