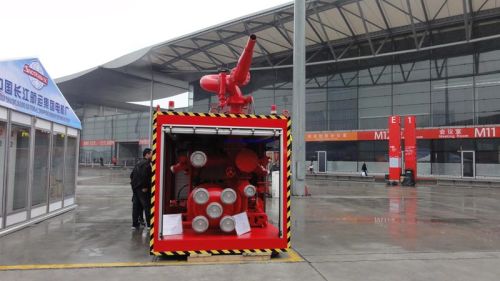

External Fire Fighting System, Brand Name : deyuan

We are offering external fire fighting system.
Driven by:diesel engine. The fire pump and engine will be installed on a common base.
Consisting of:
1) fire pump:2 sets
type: horizontal, single stage, centrifugal pump
duty specified
capacity: 600 m3h
total head: 130 m l.c.
speed: 2100 rpm
power absorbed : 273.6 kw (seawater)
efficiency: 80%
discharge : top, dn200 pn 25
suction: end, dn250 pn 16
direction of rotation: cw (viewing from driver end)
materials of construction
casing: nodular cast iron
impeller: bronze
shaft : stainless steel aisi 316
packing: soft packed
2）diesel engine:2 sets
engine model:tbd234v8, china
type:4 cycle, 8 cylinder, electrical start, 24vdc
rating type:heavy duty
rated engine power:323kw @ 2100 rpm
direction of rotation:ccw (viewing from driver end)
3） high flexible coupling
mounted between pto of diesel engine and pump
final model to be selected by maker.
&&&&&&:
