External Gear Pumps

Material Of Construction:

Standard Cast Iron Construction

Scope Of Supply:

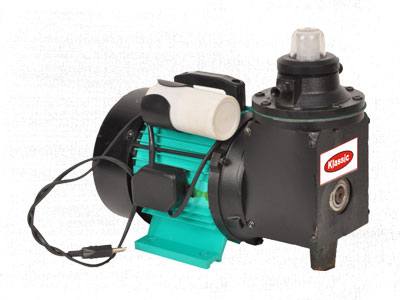

Ac lpg Pump With Suction and Delivery Pipes with Valve, Regulator and extra Diaphragmn

AC LPG Pump Techanical Secification:

• Pump Type : AC (Electric supply) LPG Diaphragm Pump
• Pump Make : Klassic
• Pump Model : MD-AC-1
• Suction x Delivery Sizes : - ¼ " x ¼ "
• Pump Capacity : 15 kg/7 Minute I.E 2.14 kg/Minute
• Maximum Pressure : 22 kg/cm2
• Pump Weight : 16 kg approx

AC Motor Specifications:

0.5 hp x 1450 rpm , Non Flame Proof Motor Totally enclosed Fan cooled Squirrel cage Induction Motors Horizontal Foot mounted B3 Construction, Continuously rated S1 Duty suitable for single phase , 220 volts , 50 Hz , AC Supply (110 volts or 60 Hz Available on request) with ambient 45ºc & class "F" Insulation.
