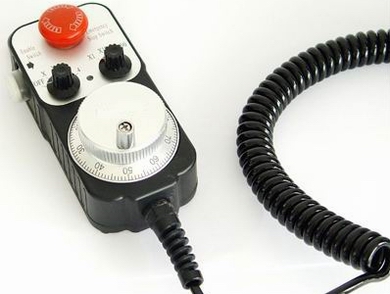

External Mpg Handwheel For CNC Machines, Brand Name : CNCmakers

We offer external mpg (handwheel) for cnc machines (1468).
Handwheel (external mpg)
characteristic
new design, portable, anti-interference, good carrier ability
full plastic cover, high insulation grade
oil-proof disign
x1, x10, x100 three multiplying
4 axes switchover
control switch, emergency switch optional
hunanization design, easy to operate
suitable for cnc machines, print machines, etc.
optional pulse
25, 100pr
electrical ratings
supply voltage: dc+5~12v
output voltage: high level≥ 85%vcc, low level≤ 0.5v
current consumption: ≤ 150ma
response frequency: 0~20khz
output waveform: square wave
circuit feature: c collector open-circuit output, f complementary output
e voltage output, l long-line driver output
machanical specifications
starting torque: 6x10-2 nm
axis peak load: radial: 20n, axial: 10n
normal mechanism rotating speed: ≤ 200rpm
peak mechanism rotating speed: 500rpm
shock resistance: 980ms2, 6ms, xyz direction 2 times for each
vibrate resistance: 50ms2, 10~200hz, xyz direction 2 hours for each
weight: 0.5kg
environment condition
working templeture: -10° c~70° c
storage templeture: -30° c~85° c
working humidity: 30~85% no moisture condensation
grade of protection: water-proof, oil-proof, dust-proof ip54.
