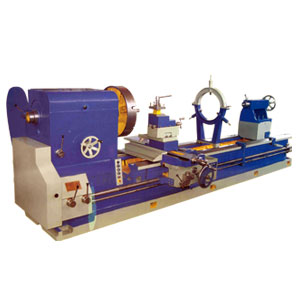

Extra Heavy Duty Lathe

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

HPSM’ Extra Heavy Duty Lathes are designed to suit all hands and are built by our well qualified Engineers backed by decades of experience. These machines are easy in operation for all light and heavy jobs, due to their high class working accuracy, versatility and steady contraction.

View More Details

Send Enquiry

Company Information

H P Singh MAchinery Pvt Ltd

Ganesh Chandra Avenue, Kolkata, West Bengal

View Number

Member Since 13 Years
Nature of Business Manufacturer
GST No. 19AAACH7128M1Z8

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Models	HPS-210		HPS-260		HPS-305				HPS-400				HPS-460				HPS-510
Diamensions	ft	mm	ft	mm	ft	mm	ft	mm	ft	mm	ft	mm	ft	mm	ft	mm	ft	mm
Length of Bed	4½	1370	5	1525	7	2135	10¼	3150	8 ¼	2515	12 ¼	3735	8 ¼	2515	12	3700	16’1″	4905
	6	1825	6½	1980	8¾	2665	12	3660	10 ¼	3125	16 ¼	4955	10’2″	3100	12	3700	20’5″	6200
Diamensions	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm
Width of Bed	11	280	13	330	15	380	15	380	18	460	18	460	21	535	21	535	21	535
Centre Height	9	230	10½	265	12	305	12	305	16	405	16	405	18	460	18	460	20	510
Spindle Bore	1¾	45	2	50	2 ^5/8	65	2 ^5/8	65	3 ^3/8	85	3 ^3/8	85	4 ^1/8	105	4 ^1/8	105	4 ^1/8	105
Admit Between Centre	22	560	22	550	40	1000	80	2000	47	1200	95	2400	38	965	85	2150	132	3350
	34	865	40	1000	60	1500	100	2500	71	1800	143	3625	60	1500	85	2150	184	4675
Swing over Bed	18	460	21	535	24	610	24	600	32	815	32	815	36	915	36	915	40	1000
Swing over Cross	10	255	12	305	14 ¼	370	14 ½	370	20	510	20	500	24	610	24	610	26	660
Gap Distance	7	180	8	205	8 ½	215	8 ½	215	13 ½	345	13 ½	345	19	485	19	485	19	485
Gap Depth from Centre	11½	290	14	355	18	460	18	460	23	585	23	585	27	685	29	685	29	735
Swing in Gap	23	585	28	710	36	915	36	915	46	1170	46	1170	54	1370	58	1370	58	1475
Dia of Lead Screw	1½	38	1½	38	1 ¾	45	1 ¾	45	2	50	2	50	2 ¼	60	2 ½	60	2 ½	65
H.P. Required	1		2		3		3		5		5		5		5		7.5
