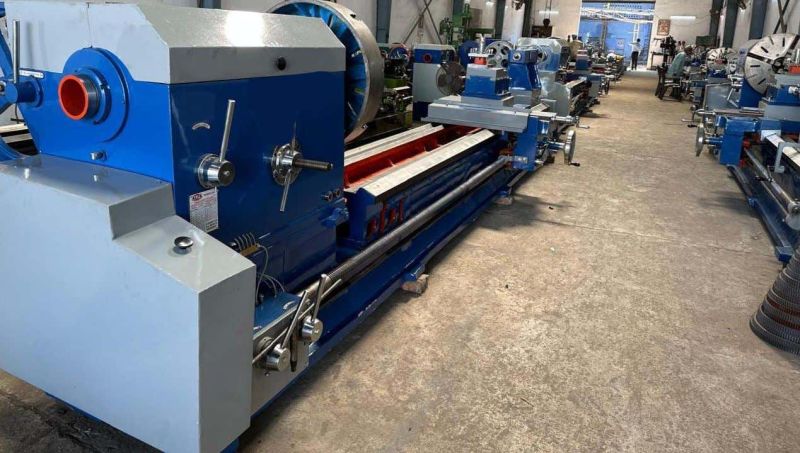

Hydraulic Cast Iron Extra Heavy Duty Lathe Machine

Hydraulic Cast Iron Extra Heavy Duty Lathe Machine

Get Latest Price

MaterialCast Iron
Driven TypeHydraulic
Machine Weight100-1000 Kg
Brand NameELITE Machine
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Company Information

ELITE Machine Tools

Gt Road, Batala, Punjab

Member Since 5 Years
Nature of Business Manufacturer
GST No. 03AAJFE6546N1Z3

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MaterialCast Iron
Driven TypeHydraulic
Automation GradeAutomatic
UsageTurning, Sanding, Knurling, Facing
Country of Origin220V
Machine Weight100-1000 Kg
Brand NameELITE Machine

Length of Bed	4½	1370	5	1525	7	2135	10¼	3150	8¼	2515	12¼	3735	8¼	2515	12½	3710	16’1″	4905
	6	1825	6½	1980	8¾	2665	12	3660	10¾	3125	16¾	4955	10’2″	3100	12½	3710	20’5″	6225
Diamensions	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm
Width of Bed	11	280	13	330	15	380	15	380	18	460	18	460	21	535	21	535	21	535
Centre of Bed	9	230	10½	265	12	305	12	305	16	405	16	405	18	460	18	460	20	510
Spindle Bore	1¾	45	2	50	2⅝	65	2⅝	65	3⅜	85	3⅜	85	4¼	105	4⅛	105	4⅛	105
Admit between Centre	22	560	22	550	40	1000	80	2000	47	1200	95	2400	38	965	85	2150	132	3350
	34	865	40	1000	60	1500	100	2500	71	1800	143	3625	60	1500	85	2150	184	4675
Swing over Bed	18	460	21	535	24	610	24	600	32	815	32	815	36	915	36	915	40	1000
Swing over Cross	10	255	12	305	14½	370	14½	370	20	510	20	500	24	610	24	600	26	660
Gap Distance	7	180	8	205	8½	215	8½	215	13½	345	13½	345	19	485	19	485	19	485
Gap Depth from Centre	11½	290	14	355	18	460	18	460	23	585	23	585	27	685	27	685	29	735
Swing in Gap	23	585	28	710	36	915	36	915	46	1170	46	1170	54	1370	54	1370	58	1475
Dia of Lead Screw	1½	38	1½	38	1¾	45	1¾	45	2	50	2	50	2½	60	2¼	60	2½	65
H.P. Required	1	1	2	2	3	3	3	3	5	5	5	5	5	5	5	5	7.5	7.5

Technical Specification

Length of Bed	12”	16”	20”	24”
Width of Bed	26”	26”	28”	28”
Height of center	24”	24”	25”	26”
Swing over Bed dia.	47”	47”	51”	51”
Swing in Gap dia.	72”	72”	76”	76”
Width of gap intent of face plate	14”	14”	15”	16”
Swing over saddle dia.	37”	37”	41”	41”
Admin between centre	70 *	120*	155*	213*
Spindle hollow	4 ¼ ”	4 ¼ ”	4 ¼ ”	4 ¼ ”
No. of Spindle speed	5	5	6	6
Size of Morse taper	5MT	5MT	5MT	5MT
Lead screw pitch	2PTI	2PTI	2PTI	2PTI
Power required in H.P.	7.5	10	15	20
R.P.M. motor approx.	960	960	960	960
Approx. weight in Kgs.	5000	6000	7200	8000
