Extra Load Range Hydraulic Bolt Tensioning Tools

Listing ID #3942124

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

The new HYTENSION Xtra load range of 1500 bar tools has been developed to suit all common size flanges; including ANSI, API and Norsok L005 Compact Flanges. The Xtra range offers high....

View More Details

Send Enquiry

Product Details

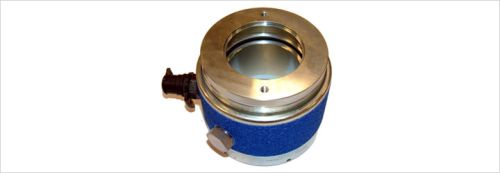

The new HYTENSION Xtra load range of 1500 bar tools has been developed to suit all common size flanges; including ANSI, API and Norsok L005 Compact Flanges.

The Xtra range offers high quality tooling to give safe and reliable operation.

30% more load than typical standard ranges, combined with a large usable piston stroke provides users with versatility, and fast, accurate operation.

The tools are fitted with a range of features including misalignment compensation device, over stroke safety and maximum stroke indicators. Spring piston return and gear drive nut rotation are available as an option.

Overview:

	High load
	Lightweight design
	Large stroke
	1500 bar maximum pressure
	Fast delivery
	Low maintenance design
	Maximum stroke indicator
	Safe over stroke mechanism
	Optional spring return
	Optional swivel connectors

	Optional twin port connection
	Optional gear drive nut rotation
	Optional square drive tool run down adaptor
	Oversize threads available to suit galvanised bolting
	Complementary pumps and hoses available
	All equipment supplied with pressure test certification
	All equipment CE marked
	All tools supplied with detailed operating, maintenance and safety manuals
	24 hour technical support
	Special designs available

NOTES

	Maximum load is generated at the maximum operating pressure of 1500 bar.
	For hoses fittings and pumps request data sheets 601, 602 & 603.
	Unless specified, inch size tooling will be threaded UNC up to 1 inch and UN8 for 1-1/8 inch upwards.
	All tools are assembled, filled with oil, pressure tested and a test certificate issued prior to despatch.
	Each tool is marked with the maximum operating pressure, load and stroke. All tools are CE marked.
	Any number of tools can be connected together for simultaneous operation.
	Tools can be machined with other thread forms - specify when ordering.
	If using tools with swivel connectors then 13 mm can be deducted from the nearest obstruction height.
	Due to continuous product development dimensions may change without notice.

Tool No.	Bolt Diameter		Hydraulic Area	Max Load		Tool Ø	Tool Height	Bridge Height	Rear Angle	Minimum Bolt Pitch	Nearest Obstruction	Tool Weight
Tool No.	inch	mm	mm²	kN	klbf	mm	mm	mm	mm	mm	mm	kg	lbs
C1	3/4	M20	891	134	30.1	56	85	40	14.8	48.4	158	1.3	2.9
C2	7/8	M22	1268	190	42.7	63.5	92	45	18	52.2	167	1.8	4.0
C3	1	M24	1628	244	54.9	72	99	46	24	58.6	180	2.5	5.5
C4	1-1/8	M27 M30	2154	323	72.6	83	105	50	25	62.9	191	3.4	7.5
C5	1-1/4	M33	2747	412	92.6	92	109	53	27	70.2	199	4.3	9.5
C6	1-3/8	M36	3419	512	115.3	101	114	55	31	77.2	207	5.3	11.6
C7	1-1/2	M39	4153	623	140	111	127	62	36	81	222	6	19.8
C8	1-5/8	M42	4966	745	167.5	119	131	65	37	98.4	229	8.2	18
C9	1-3/4	M45	5901	878	199	129	139	69	39	94.3	242	10.4	23
C10	1-7/8	M48	6817	1022	229.8	138	143	69	42.5	100.3	247	12.2	26.8
C11	2	M52	7856	1178	264.8	147	152	74	44	108.3	260	14.5	31.9
C12	2-1/4	M56 M60	10117	1519	341.5	167	164	79	50	120	282	20.1	44.2
C13	2-1/2	M64	12702	1904	428.2	187	181	90	55	132.8	300	26.5	58.2
C14	2-3/4	M68 M72	14084	2111	474.6	198	191	96	62	144.5	320	33	72.6
C15	3	M76	16912	2539	570.8	215	200	102	69	160.3	330	40	88
C16	3-1/4	M80 M85	20056	3006	676.9	236	219	110	69.5	170.3	362	48.3	106.3
C17	3-1/2	M90	23423	3512	789.5	250	224	115	79	185.9	370	61	134.2
C18	3-3/4	M95	27051	4058	912.2	267	246	125	80	195.3	394	69.8	153.6
C19	4	M100	30984	4648	1044.9	286	257	132	88	241.1	411	78.5	172.7
