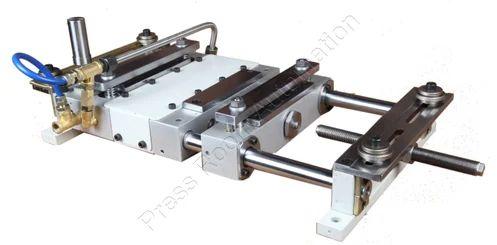

Extra Mid Series Pneumatic Feeder

₹ 60,000 / Piece

Max Stroke Thickness2.5 mm
Weight18.5 Kg
Max Stroke140 Per Minute
Air Pressure Required5-8 Bar
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Company Information

PRESS ROOM AUTOMATION AND FEED FIXTURES PVT LTD.

Anand Nagar, Thane, Maharashtra

4.4/5

View Number

Member Since 16 Years
Nature of Business Manufacturer
GST No. 27AABCP8669E1Z3

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Max Width100 mm
Traction Force40 Kg
Max Stroke Length100 mm
Max Stroke140 Per Minute
Weight18.5 Kg
Pressure of Moving Clamps137 Kg
Air Pressure Required5-8 Bar
Pressure of Fix Clamps65 Kg
Max Stroke Thickness2.5 mm
Total Consumption0.77 CC/Stroke

Extra Mid Series Pneumatic Feeder is used to feed width from 100-600 mm & thickness from 0.5-2.5 mm material. It is most suitable for manufacturing small auto parts, kitchen appliances, utensils, furniture & fixtures, Locking Systems, etc.

Extra Mid Series (EMS)

Max width in mm	Max stroke Length in mm	Max strip Thickness mm	Max strokes Per minute	Pressure of fix Clamps kg.	Pressure of Mobile Clamps kg.	Traction	Total Consumption CC/Stroke	Weight Kg.
Max width in mm	Max stroke Length in mm	Max strip Thickness mm	Max strokes Per minute	Pressure of fix Clamps kg.	Pressure of Mobile Clamps kg.	force Kg.	Total Consumption CC/Stroke	Weight Kg.
100	100	2.5	140	65	137	40	0.77	18.5
100	200	2	80	65	137	40	1.73	19.5
100	300	1.5	60	65	137	40	2.56	20.5
150	150	2	100	65	137	40	1.54	23
225	200	1.2	80	65	137	40	1.73	30
300	300	0.6	60	65	137	40	2.56	35
400	100	1	80	65	137	40	0.77	42.5
600	100	0.5	60	65	137	40	0.77	51
