Extruder Machine

Listing ID #3784714

  • Supply Type Exporter, Supplier
Preferred Buyer From : All over the world

We offer to our clients a wide range of Extruder that is available as per different type of cable compounds, such as PVC, PE, HDPE, LD, Sioplas, XPLE and Nylon. These are used for Insulation,....
View More Details
Send Enquiry

Company Information

  • Member Since 15 Years
  • Nature of Business Manufacturer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

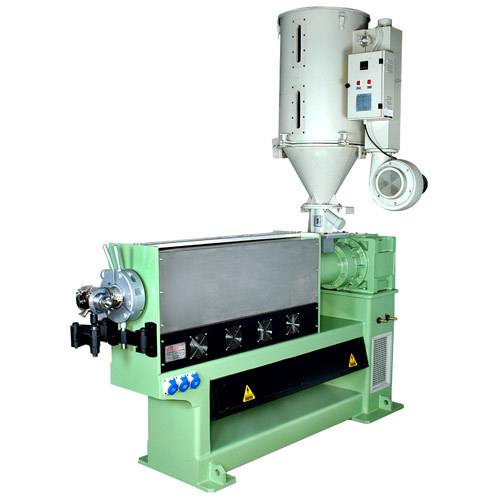

We offer to our clients a wide range of Extruder that is available as per different type of cable compounds, such as PVC, PE, HDPE, LD, Sioplas, XPLE and Nylon. These are used for Insulation, Sheathing, Jacketing and Skinning of cable, such as power cable, XLPE cables, control cables, railway signaling cables, quad cables, instrumentation, cables, telephone cables and switchboard cables.

The Extruders are transmitted by a helical extruder gear box with in built thrust assembly to bear back pressure load of screw rod. Moreover, the gear box is fitted with hardened and ground gears that are made using tested alloy steel to give, soundless and pulsation free delivery, on high RPM and Torque.


Model S.E.I. 30 S.E.I. 40 S.E.I. 50 S.E.I. 65 S.E.I. 80 S.E.I. 100 S.E.I. 120 S.E.I. 150
Screw Dia 30 40/45 50 65 80 100 120 150
L/D Ratio 24 24 24/26 24/26 24/26 24/26 24/26 24/26
Compression Ratio 3:1-2.5:1 3:1-2.5:1 3:1-2.5:1 3:1-2.5:1 3:1-2.5:1 3:1-2.5:1 3:1-2.5:1 3:1-2.5:1
Screw RPM (Max.) 120 120 100 100 80 80 60 60
Heating Load (KW) 6 12 15 20 25 30 34 40
Main Drive(KW) 3.7 5.6 10 30/ 22.5 45 56 75 110
Output (Kgs./Hrs.) 25 45/60 80 130 250 375 550 750

Company Details close-icon

Established in the year 1978, Saini Engineering Works is recognized amongst the prominent manufacturers and exporters of Cable Extrusion and Thermoplastic Extrusion Machinery. Our range includes Extruder, Co Extruder, Screw & Barrel, Cross Head Haul off Caterpillar, Capstan and Take up & Pay off Stand to our clients.
Apart from this, we also offer Pintal Type Arm Cantiever Take up Stands, Drive Penal, Auto Coiling Machine, Armouring Core Laying / Stranding Machine (Tubular Stranding) and Compounding Extruder.
We are an ISO 9001:2000 certified company and make sure that our range meets the industry standards. In order to maintain quality of our range, we manufacture it utilizing high grade material and rigorously check it on its performance & durability before sending at the client’s end. We own a state-of-the-art infrastructure and in-house design unit that assist us in designing & fabricating a superior range of Cable Extrusion and Thermoplastic Extrusion Machinery.
Our company follows ethical business practices while dealing with our clients. All our endeavors are directed towards providing complete satisfaction to our clients. We leave no stone unturned to provide quality range within the stipulated time frame to our clients. Our commitment to quality, client centric approach and transparent business dealings has enabled us to garner a huge client base not only in India but also in Brazil, UAE and South Africa.
Our organization was founded by Mr. S. Mohinder Singh Saini and is now headed by Mr. Ajeet Saini. He has a vast industry experience of 15 years, which has enabled us to reach the heights of success.
