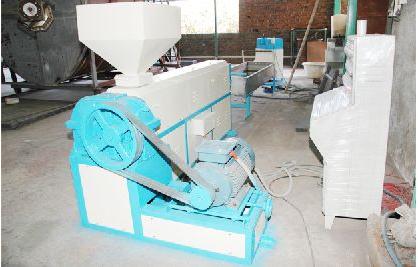

| base | the extruder is mounted on a steel frame of welded construction to make it sturdy. The construction is such so as facilitate easy accessibility to various parts for better maintenance. The main drive motor compete with reduction gear box is mounted on base frame. |
| drive | the drive to the screw is through a a.c motor. The extruder screw is coupled to a helical reduction gear unit having in built thrust bearing. Drive from motor to gear box is through rubber belts & pulleys. |
| thrust unit | the load is transmitted by screw to this thrust bearing sleeve housed in large capacity roller bearing. Complete thrust housing is dipped in oil. the complete drive system is provided with safety devices to ensure a trouble free and smooth performance. Indicators for current, voltage etc. Are also provided. This unit incorporates two nos. Of roller and one thrust bearing of adequate rating to effectively counters thrust by the screw while running. |
| barrel | single piece construction barrel made of alloy steel. The barrel has a central feed opening for the raw material. |
| barrel heating | the barrel is heated by ceramic band electrical resistance heaters in different zone. The heating parameter in each zone is controlled separately. The control panel housed the temperature indicating controllers for each zone. |
| cooling | water cooling tank with its stand. |
| pelletizer | pelletizer with standard make motor, 9 inch 7 no blades (6 rotary and 1 fix). |
| control panel | various controls are housed in separate controlled cabinet. The cabinet houses various controls including: temperature controllers, ammeter with selector switch, temperature scanner other necessary electrical components such as contactors, relays, push buttons, indicating lamps, voltmeter, fuse units / mcb etc…. |
| electric motors. | foot mounted , class “ f “ insulation suitable for 415 v / 50 hz / 3 phase  / ac supply electric induction motor of standard good quality make. |
