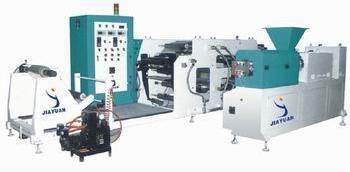

We are offering Double Screw Extruding Coating Machine.
Product description
range of application: this machine is designed and manufactured by taking the advanced technology from home and abroad. It can be applied in all kinds of shoe materials, such as hot melt adhesive film,kp, absorbing cloth, etc.
product feature
main characteristic: 1. Main parts such as screw, roller and die are made of 38crmoala, and have given hydrotreating, so they are wearproof and corrosion resistance. 2.major axis screw is well plastified to guarantee the uniformity of film. 3.exchanging filter net in die head and adopting up and down device with motor to get convinient operating, so as to improve the production efficiency.(hydraumatic net changer can be collorated as customers requirements)
product specification/models
techncial parameter: 1. Film width: 670mm-1400mm 2. Film thickness: 0.3-2.0mm 3. Screw diameter: 110mm-120mm 4. Main motor power: 45kw-55kw 5. Max. Yield: 135kg/h-250kg/h 6. Total power: 65kw-100kw 7. Overall dimension: 11*2*1.8m 13*2.8*1.8m
