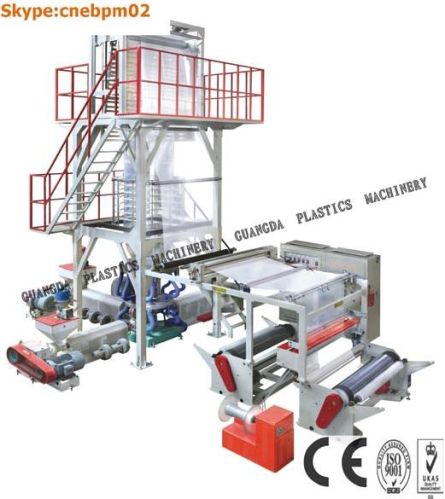

Contact SupplierWe are offering a b c three layer co extrusion blown film machine. Model gd-3l45 gd-3l50 gd-3l55
suitable material hdpe ldpe hdpe eva
film width(mm) 800-1300 800-1500 1200-2000
film thickness(mm) 0.028-0.18 0.028-0.18 0.03-0.18
max, extrusion output(mm) 130kghr 190kghr 260kghr
screw diameter(mm) aφ 45 bφ 50 cφ 45 aφ 50 bφ 55 cφ 50 aφ 55 bφ 65 cφ 55
screw ld length 28: 1
screw material sacm-64538 crmoala
cylinder material sacm-64538 crmoala
cylinder cooling 370w*23 370w*23 550w*23
driving motor a15+b18.5+c15 a18.5+b22+c18.5 a22+b37+c22
temperature control 3*3 3*3 3*3
average power-consume(kw) 58 70 90
die size(mm) 200250 250300 350400
temperature control 4
air ring 1 pcs
air blower 5.5 7.5 11
pinch roller(dia. Width)mm φ 165*1400 φ 165*1600 φ 190*2100
take-up speed(mmin) 5-60 5-60 5-60
take-up motor(kw) 1.5 1.5 2.2
type surface friction type
winding motor(kw) 1.5 1.5 2.2
winding speed(mmin) 5-60 5-60 5-60
cover dimension(m) 7.5*5.5*7.0 8.2*5.8*7.0 9.0*6.4*8.2
