Contact SupplierProduct description:

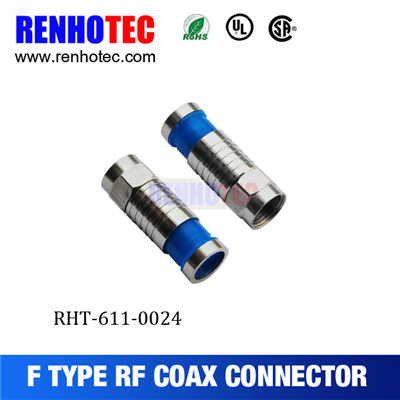

the f-type connector series is a high performance, cost competitive threaded connector series. Primary applications of the f-type connectors are for cable television (catv), set top boxes and cable modems.
Major technical characteristics:
temperature range
-40 to +60 dregree
vibration
100ms2 (10 to 500 hz), 10g
impendance
75ohm
frenquency range
dc-1ghz
working voltage
170v r.m.s at sea level
workstandinging voltage
500v r.m.s at sea level
center contact resistance
≤10mohm
outer contact resistance
≤5mohm
insulation resistance
≥1000mohm
center conductor retention force
≤0.2n
insertion loss
≤0.20db3ghz
voltagge standing wave ratio :
straight
≤1.223ghz
right angle
≤1.303ghz
dutability (mating)
≤500(cycles)
materials
body
brass..........nickel
insulator
pom..............white
contact pin
brass............nickel
suitable cables
rg6, rg58, rg59, rg174, rg179, rg316. (more option, please contact us)
