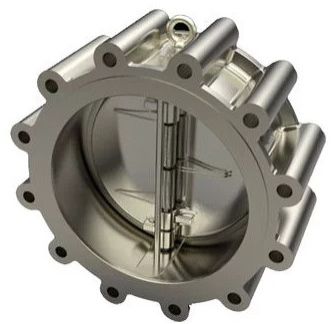

F347 Dual Plate Lug Check Valve

Get Latest Price

Buttweld End DimensionsANSI B16.25
Design StandardANSI B16.34,API 6D,DIN 3840,BS EN 1868
Face To Face DimensionsANSI B16.10,API 6D,DIN3202,BS EN558-1
Flange End DimensionsANSI B16.5,DIN 2543,BS EN 1092-1
PressureClass150 To Class600,PN1.6,PN2.5Mpa,PN4.2MPa
Supply TypeManufacturer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

SVR GLOBAL

Pappanaickenpalayam, Coimbatore, Tamil Nadu

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Buttweld End DimensionsANSI B16.25
Design StandardANSI B16.34,API 6D,DIN 3840,BS EN 1868
Face To Face DimensionsANSI B16.10,API 6D,DIN3202,BS EN558-1
Flange End DimensionsANSI B16.5,DIN 2543,BS EN 1092-1
PressureClass150 To Class600,PN1.6,PN2.5Mpa,PN4.2MPa

We offer the F347 Dual Plate Lug Check Valve designed to meet Pressure Class150 to Class600 standards, with Design Standard ANSI B16.34 ensuring top-notch quality. The valve's Face To Face Dimensions adhere to ANSI B16.10, while the Flange End Dimensions and Buttweld End Dimensions are in line with ANSI B16.5 and ANSI B16.25 respectively. Ideal for manufacturers seeking reliable valves that guarantee optimal performance and durability. Upgrade your industrial operations with this precision-engineered valve that meets stringent industry standards.

NPS		in	2	21/2	3	4	5	6	8	10	12	14	16	18	20	24
150Lb	L	mm	60	67	73	73	86	98	127	146	181	184	191	203	219	222
	D	mm	103	122	135	173	196	222	279	339	409	450	514	549	606	717
	D1	mm	120.5	139.5	152.5	190.5	216	241.5	298.5	362	432	476	540	578	635	749.5
	D2	mm	92	105	127	157	186	216	270	324	381	413	470	533	584	692
	n-Фd	mm	4-19	4-19	4-19	8-19	8-22	8-22	8-22	12-25	12-25	12-29	16-29	16-32	20-32	20-35
300Lb	L	mm	60	67	73	73	86	98	127	146	181	222	232	–	–	–
	D	mm	110	128	148	180	215	250	307	361	422	485	539	–	–	–
	D1	mm	127	149	168.5	200	235	270	330	387.5	451	514.5	571.5	–	–	–
	D2	mm	92	105	127	157	186	216	270	324	381	413	470	–	–	–
	n-Фd	mm	8-19	8-22	8-22	8-22	8-22	12-22	12-25	16-29	16-32	20-32	20-35	–	–	–
600Lb	L	mm	60	67	73	79	105	137	165	213	229	273	305	–	–	–
	D	mm	110	129	148	192	240	265	319	399	456	489	562	–	–	–
	D1	mm	127	149	168.5	216	267	292	349	432	489	527	603	–	–	–
	D2	mm	92	105	127	157	186	216	270	324	381	413	470	–	–	–
	n-Фd	mm	8-19	8-22	8-22	8-25	8-29	12-29	12-32	16-35	20-35	20-38	20-41	–	–	–
