Fabric Acoustic Panel, Brand Name : Murano

Core:
Fabric Wallmount Systems LLC presents WALLMATE, a high tension fabric mounting system that revolutionizes the way fabric can be applied to walls as both a decorative and acoustical wall finish.
Wallmate departs from the traditional method of wall upholstery which still uses wood lath, staples, gimp and welting.
A method which has become expensive and specialized. Wallmate removes the barriers of expense
and expertise and exchanges them for simplicity at an affordable cost.
Advantage:
1.Wallmate is a two piece system with a mounting platform.Choice of fastener is optional;
because of the tensions involved,the mounting must be secure.
2.An outer profile, (radius) is inserted as shown. This creates a working hinge.This outer profile can rotate 90 degrees.
3.In its closed position, the outer profile has locked. It is easy to see that the engineered design has great strength and rigidity.
4.A bevel profile shows alignment tape being uncovered. Fabric is positioned, adjusted and trimmed.
5.Fabric is in place, an extra 1 12” of fabric is folded under.
6.The outer profile is ready to be snapped closed and locked.

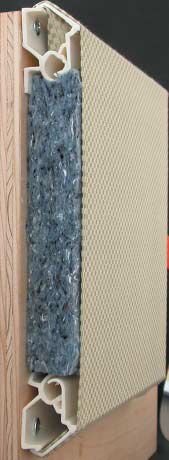

7.SQUARE EDGE Profile with fabric under tension
8.RADIUS EDGE
9.BEVEL EDGE
