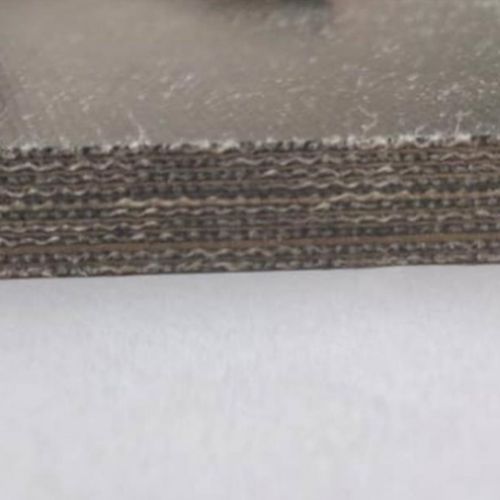

Fabric Pad

Fabric Pad

Pads Offer An Easy, Economical Way To Solve Problems Associated With Impact, Shock, And Vibration, Which Can Cause Costly Damage To Machines, Mounting Devices And Floors. These Tough, Textile- And Neoprene-laminated Pads Are Ideal For Installations With Extreme Loadings Or Heavy Impact

When Considering Vibration Isolation, Usually More Than One Disturbing Frequency Is Present In A Machine. As A General Rule, An Attempt Should Be Made To Isolate The Frequency Producing The Largest Vibration Amplitude, While Avoiding Resonance With The Other Disturbing Frequencies. Our Fabric Reinforced Elastomeric Material, With Its Resilience, Minimal Deflection And High Strength, Often Serves As A More Practical Vibration Isolator Than Softer Materials. The Use Chloroprene Rubber Provide The Superior Environmental Properties Our Part In Isolating Noise Is One Of Reducing Structure-borne Noise. Pad Reduces Mechanical Vibrations Which Can Be Converted To Air-borne Noise. When Isolating Structure-borne Noise, It Is Essential That All Conductive Paths Of Vibration Be Blocked. Therefore, Pads, Washers And Bushings Are Required To Completely Break The Metal-to-metal Contact Between The Isolated Unit And Its Support.

Depending Upon The Size And Thickness,fabric Pad Can Ultimately Withstand Loads Up To 600kg/cm2. Normally, Compressive Stresses Are Designed Not To Exceed 800kg/cm2 To Extend Service Life And Reduce Permanent Set.

Key Features

• Ozone Resistance
• Impermeable To Most Oils And The Effects Of Steam,
• Water, Mildew And Brine
• Capable Of Withstanding Continuous Heavy Traffic And Extreme Loads Imposed By Heaviest Dies.
• Low Maintenance- Creep Is Limited To Approximately 5% Of The Original Pad Thickness
• Has A Relatively High Damping Rate Of 14% Of Critical
• Effective Temperature Range Is -20°c To 100°c
