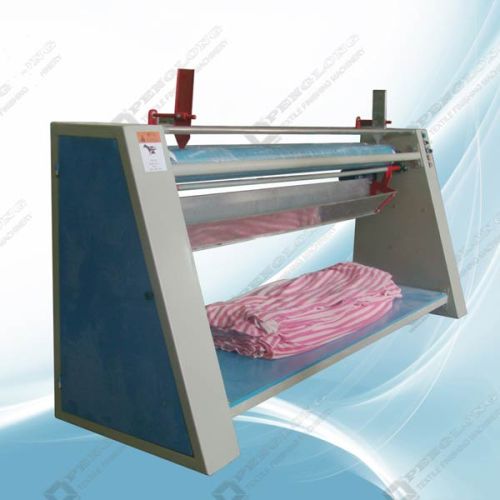

Fabric Unwinding Machine, Plaiting Machine, Brand Name : Penglong

We are offering fabric unwinding machine, plaiting machine.
Usage:this unit is suitable for plaiting various kinds of fabrics,has been widely used to eliminate fabric tension during process
characteristics
1.motor is controlled by inverter.it could be in forward and reverse running.
2.equipped with two wood plates installed two wheels each at one side for piling fabrics.
3.speed of the roller is adjustable and controlled by control box.
4.offers tidy and uniform stacked fabric folding breadth.
5.a whole bolt of fabric or the halfway defective fabric can be re-wound.
6.easy operation and manpower saving.
7.equipped with two movable steel fixing position plate,saves auto edge-aligning system
technical parameters
1.working width:1600-2400mm
2.rewinding rollers:200mmx2,rubber face
3.highest speed:80mmin (adjustable)
4.main motor:1hpx1
5.transmission type:belt
6.auto stop type:1set
7.fabric diameter:400mm
8.dimensions:lxwxh 1800x900x1400mm
