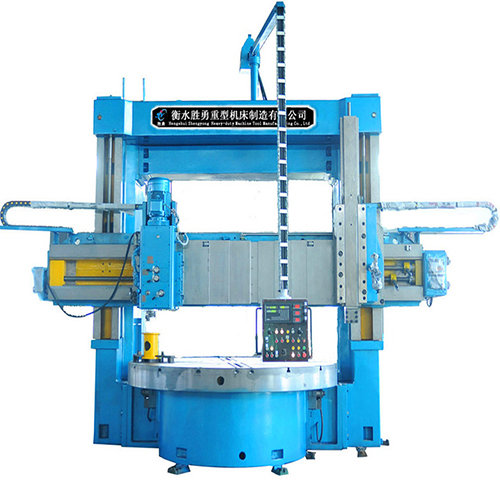

Factory Price New CNC Vtl Machine

CNC vtl machine is suitable for machining in industries of motor,turbine, aerospace, mining as well as metallurgy, etc. Our new cnc vtl can apply to valve processing, spare parts and cast iron, ductile gate valve ,butterfly valve ,etc .
Our new cnc vtl machine is casted by the quality Mechanize resin sand process. Times effect of aging treatment times, with strong shock-absorbing ability.Working table adopts hydrostatic guide way. gear was made by quenching way which got little noise.
Technical specification of Factory price New cnc vtl machine C5232
1 Maximum turning diameter 3150 mm
2 Maximum Height of workpiece 16002000220025003000 mm
3 Maximum Weight of workpiece 1020 t
4 Table diameter 2830 mm
5 Speed range of table 2-63 rmin
6 Maximum torque 63 KNmin
7 Vertical Travel of tool post 10001250 mm
8 Horizontal travel of tool post 1735 mm
9 Rotation angle of tool post ±30° degree
10 Power of main motor 55 kw
11 Machine weight About 36-50 t
