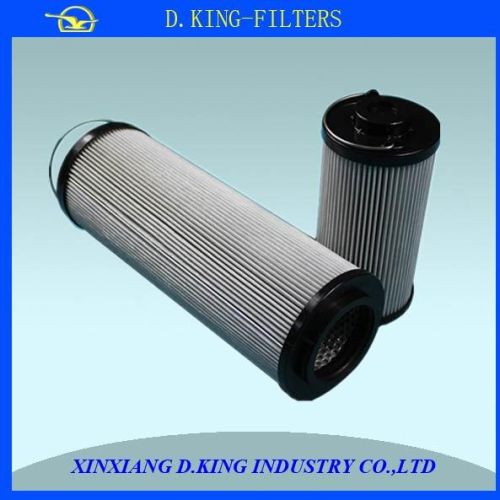

Factory Sales Oil Filter, Brand Name : D.King

we are offering factory sales oil filter. keywords: oil filter hydraulic filter high pressure filter
effect: hydraulic pressure oil returnsuction filter element install oil-put of oil pump in common. use to protect oil pump avoid to suction major mechanical admixture.filtering prill what component abrade created in hydraulic pressure and sealing element rubber impurity etc pollutant , make oil what reflow to tank keep clean .
characteristics: structure strict reasonable , big ability pass oil , small reset pressure loss , big quantity accept dirt .etc.
structure:
top and bottom caps material : aluminum , stainless steel
inner tube material: galvanized sheet , stainless steel tube
filter medium, material :stainless steel mesh and filter paper
applications: scope of application: petroleum, water, air, oil field, refinery, medicine equipment, pipeline filters, railroad, astronautics, project machinery, etc
company profile
our company was founded in 1987 , has done in filtering field for more than 25 years , major products are filters and filter cartridges , used in all kinds of industry.
our mian product
the hydraulic filter , air filter , duplex filter , candle filter , water filter are the major products of our company . high quality and shortest delivery time is our advantages .we can produce products according to clients requirements .
model:
model dn (mm) nominal flow rate (lmin) filter precision (um) reset pressure loss (mpa) mating assembly model
lx-40 20 40 80
100
180
no more than 0.01 isv20-40
lx-63 25 63 isv25-63
lx-100 32 100 isv32-100
lx-160 40 160 isv40-160
lx-250 50 250 isv50-250
lx-400 65 400 isv65-400
lx-630 80 630 isv80-630
lx-800 90 800 isv90-800
lx-1000 100 1000 isv100-1000
no more than 0.01 tf-25 -l
tfx-40 20 40 tf-40 –l
tfx-63 25 63 tf-63 -l
tfx-100 32 100 tf-100 –l
tfx-160 40 160 tf-160 –l
tfx-250 50 250 tf-250 –l
tfx-400 65 400 tf-400 –l
tfx-630 90 630 tf-630 –l
tfx-800 90 800 tf-800 –l
tfx-1000 90 1000 tf-1000 –l
