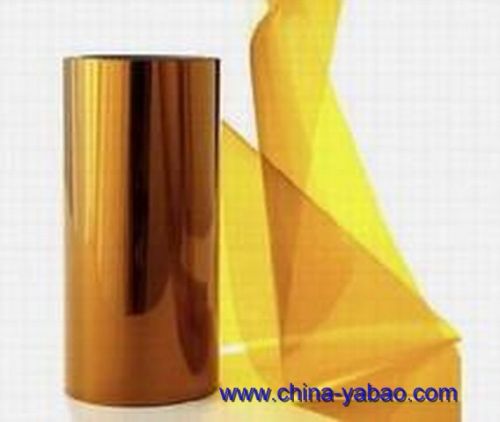

(factory Supply)kapton Fpc Polyimide Film Treated On Both Sides(with FEP/f46)

Kapton fpc polyimide film is treated on both sides and has the same excellent balance of physical, chemical and electrical properties over a wide temperature range offe red by general purpose kapton hn. Kapton fpc offers superior dimensional stability and adhesion, and is specifically designed for flex circuit manufacturers. Adhesion data for fpc can be referenced in the adhesion to kapton technical bulletin.
In applications where superior adhesion and low shrinkage are important, kapton fpc is the polyimide film of choice.
specifications
appearance: smooth and bright film surface. The defects of folding, broken, particulate air bubble, pinpoint and foreign impurities, tidy edges and non damage the film provided in rolling.
dimension
1) thickness and deviation of allowing:
note: supply 125-225μm according to user’s enquiry too, allow both sides of supply and demand of the deviation to consult.
2) width: not less than 250mm, deviation of ±1.6mm. According to the customer’s requirements, the different size of type can be made.
3)length: supplied according to the customer’s requirements.
characters:
* excellent heat resistance.
* excellent dielectric performance.
*higher mechanical strength, better tear resistance and flexibility.
*machinable with standard tools
* low wear and friction
* good compatibility with fillers
applications
•flexible printed circuits
•automotive
•computers
•consumer products
•telecommunications e quipment
•industrial instrumentation and controls
•military applications
•aerospace
•electronic parts
•pcb stencils
•screen printing
•insulation tubing
technic index
property
1 mil
2 mil
3 mil
5 mil
dielectric strength, v/mil
7,700
6,100
5,200
3,900
coefficient of thermal
expansion, ppm/°c
20
20
20
20
adhesion, pli
10
10
10
10
dimensional stability, %
.03
0.3
03
0.3
our factory competitive advantages
*well competitive prices and high quality control *prompt delivery
*customer's design and logo are welcome *fit for gifts and premiums
*earth-friendly products *in a variety of design
*small order acceptable *oem accepted
about factory:
jiangsu yabao insualtion material co., ltd. Was established in 1986,specializing in producing insulation materials: i.e.
polyimide film series:
polyimide film 6051
corona-resistant polyimide film (cr film)
polyimide film with f46 (fep) tape
adhesive tape series
polyimide film with acrylic adhesive tape
polyimide film with silicone adhesive tape
composite material series
composite material (nhn, nmn)
mica insulation material (mica tape, mica foil and mica board).
packing, mark, preservation and transportation
1. The film should be provided in rolls and wound up to the pipe core, each roll is well packed and loaded with plastic bag to be placed into dry and clean box.
2. The each box packing should be marked with the type, product specification, size, lot number, gross weight, net weight, date of manufacture, name of the manufacturer and the product acceptances certificate is attached. At the same time the painting words of damp-proof collision-proof etc.
3. The should be pressured in dry and clean room, the preservation period from the date of production is two years and can still be used when it is qualified in case of the preservation period is exceeded and checked according to standard.
4. During the preservation and transportation, damping and mechanical damage should be avoided.
