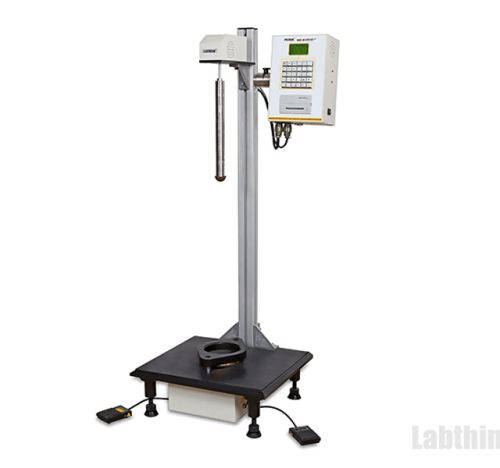

Falling Dart Impact Tester

Supply TypeManufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

BMC-B1 is designed for determination of mechanical properties of packaging materials such as plastic films, laminates and paper by a free falling dart from a certain height. This instrument is....

View More Details

Send Enquiry

Company Information

Polytech Instruments Pvt.Ltd.

Ghodbunder Road, Thane, Maharashtra

View Number

Member Since 17 Years
Nature of Business Exporter
Year of Establishment 2004

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

BMC-B1 is designed for determination of mechanical properties of packaging materials such as plastic films, laminates and paper by a free falling dart from a certain height. This instrument is designed according to ASTM D1709 with method A & B.

Principle
Before starting the test, choose test method, and estimate an initial mass and Δm. Start the test. If the first specimen fails, decrease the mass of the falling dart by Δm. If the first specimen is not a failure, increase the mass of the falling dart by Δm. Continue the test according to this rule. In brief, increase or decrease by Δm according to whether the former specimen is a failure or not. After 20 specimens, calculate the total number of failed specimens N. If N equals to 10, the test is over. If N is less than 10, add specimens and continue to test until N equals to 10. If N is greater than 10, add specimen and continue the test until the number of non-failure specimens reaches 10. Then the tester calculates the test results automatically according to specific formulas.

Features:

Basic Applications
Impact resistance test of plastic films, sheets and composite films e.g. PE preservative films, wrapping films, PET sheets and other food package and heavy packages
Impact resistance test of aluminum foils and aluminum plastic composite films
Impact resistance test of paper and paper board
Extended Applications
Test the resistance of the specimen against the falling ball. Mount the specimen on specific clamp for falling ball impact test and select falling ball of certain weight for the impact test. Check the status of the specimen and determine the impact resistance of the specimen
Impact test of shoulder lining. Mount the shoulder lining specimen to the specified clamp and select falling dart of certain weight for impact test. Check the status of the specimen and determine the impact resistance of the shoulder lining specimen.

Specifications	BMC-B1
Test Method	Method A or Method B is optional
Test Range	Method A: 50~2000 g Method B: 300~2000 g
Accuracy	0.1 g (0.1J)
Specimen Clamp	Pneumatic Clamp
Pressure of Gas Supply	0.6 MPa (outside of supply scope)
Port of Gas Supply	Φ8 mm PU Tubing
Specimen Size	> 150 mm x 150 mm
Power Supply	220VAC 50Hz / 120VAC 60Hz
Net Weight	70 kg
Instrument Dimension	Method A: 500 mm (L) x 450 mm (W) x 1320 mm (H)
Instrument Dimension	Method B: 500 mm (L) x 450 mm (W) x 2160 mm (H)

Basic Applications	· Impact resistance test of plastic films, sheets and composite films e.g. PE preservative films, wrapping films, PET sheets and other food package and heavy packages
	· Impact resistance test of aluminum foils and aluminum plastic composite films
	· Impact resistance test of paper and paper board

Extended Applications	· Test the resistance of the specimen against the falling ball. Mount the specimen on specific clamp for falling ball impact test and select falling ball of certain weight for the impact test. Check the status of the specimen and determine the impact resistance of the specimen
	· Impact test of shoulder lining. Mount the shoulder lining specimen to the specified clamp and select falling dart of certain weight for impact test. Check the status of the specimen and determine the impact resistance of the shoulder lining specimen.
