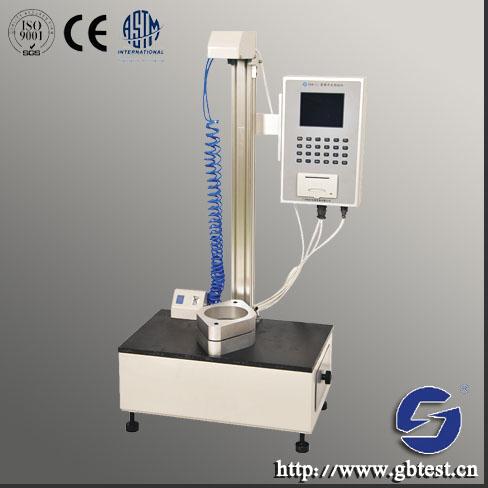

Falling Dart Impact Tester

We are offering falling dart impact tester.
the instrument molding is novel with more convenient operation.
The testing data can be calculated and treated automatically.
The testing process is automated. It can indicate operating process automatically and print and display in lcd the data.
In the testing method, modes a and b can be chosen.
tech details:
1.power : 220±10％
2.dart head quality: 50-2000g 50g/ increment
3.dart head semidiameter: r19±1mm in the a method and 25±mm in the b method
4.sample clamp device: external diameter 150mm, and inside diameter 125mm
5.impact height: 1500mm
6.impact energy: 30j
7.external dimension : 550(l)mm×365(w)mm×2000(h)mm
8.weight: 60kg
