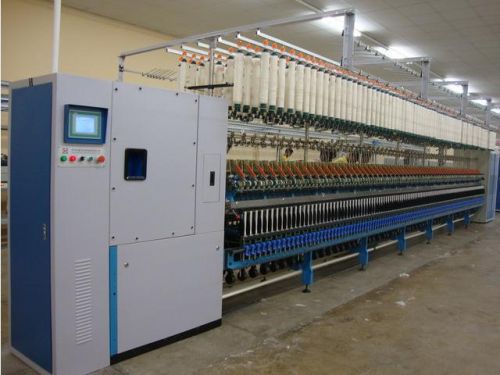

Fancy Yarn Spinning Machine

₹ 9.05 / Set

MOQ1 Set(s)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are offering fancy yarn spinning machine. Two lines of back roller one line of middle roller and one line of front roller make up the drafting structure, to form the double drafting areas. The....

Company Information

Member Since 12 Years
Nature of Business Supplier
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering fancy yarn spinning machine.
Two lines of back roller one line of middle roller and one line of front roller make up the drafting structure, to form the double drafting areas. The four roller、spindle transmission and lift stroke system is completed by six sets of independent driving systems. All technological parameters can be set、amended、displayed and stored by plc and touching screen，while it is unnecessary to change the transmission parts.
spindle: 240
spindle gauge: 70mm
lift stroke: 205mm
ring diameter: ф45
yarn count：5-21ne (if the finished yarn count is more than 21 ne, the demand for the fineness & length of the raw material should be higher.)
spindle speed: 8000-16000rpm
drafting system: four-roller, long and short aprons, pressured cradle.
