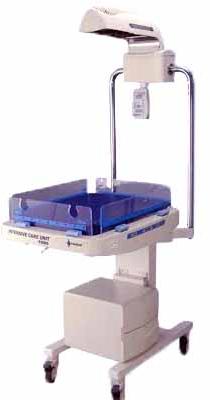

Fanem Baby Warmer

Features

• Microprocessed Seven Segment LED display
• Microprocessed Monochromatic Graphic Display Monitor
• Microprocessed Colorful Graphic Display Monitor 8.4"

Control system

• Three modes of operation
• Skin or servo mode
• Pre-heating mode
• Skin or servo mode control range: 34°C to 38°C
• Manual mode - Heater Output adjustable from 0-100% in
• Pre heating mode - Fixed at 30%
• Auto test function performed at Power on
• Temperature measurement accuracy - ±0.2°C
• Skin probe accuracy - ±1°C (Range 25" to 45°C)
• Temperature display resolution - ±0.1°C
• Heating element - 560W
• Heater warmup time at 100% power in less than 2 mins
• Auxiliary LED light

Physical characteristics

• Height - 1886mm to 2086mm (Optional)
• Depth - 1143rnrnWidth: 1000mm
• Two drawer storage system(Optional)
• Continuous Electrical tilting: t 12"(Optional)
• Mattress: 65 X 45 X 5cm
• Infusion pump stand

Weighing scale specifications

• Range - 200 gms to 10kg
• Accuracy: ±4gm

Bilitron Bed for Ample

• Integrated under surface phototherapy
• Gel mattress
• 8 super LED's
• Irradiance: 30 to 45 uw/cninm

T-piece resuscitator specifications (Optional)

• Manometer  -20 to 80cm H2O
• Maximum Pressure - 70cm H2O
• PIP - 5 to 70cm H2O @ 8LPM
• PEEP - 2 to 10cm H2O @ 8LPM
• Gas inlet flow range - 5LPM (min) to 15LPM (max)
• 02 concentration - 21% to 100% depending on the inlet gas source

Blender (Biomed.USFD A approved) (Optional)

• Range: 21% to 100%
• Accuracy, ± 3%
• Minimum input gas supply pressure - 25PSI

Bilitron 3006 BTB(Optional)

• Integrated top surface phototherapy
• Five super LED's
• Irradiance 30 to 40uw/cni nm
