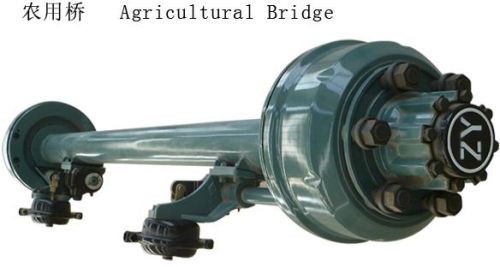

Farm Trailer Axle

₹ 40,725 / 750 750 Set

MOQ10 Set(s)
Hole diameter162
Capacity6ton, 8ton
Brake300*120
Track2200
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Shandong Lianshan Zhengyang Trailer Parts Co.,Ltd

Member Since 11 Years
Nature of Business Supplier
Year of Establishment 2004

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Centre distance of brake chamber1560
Brake300*120
P.C.D222
Stud6*30*1.5
Hole diameter162
Weight220kg, 226kg
Total length2460
Axle tube108
Recommended wheel5.50F-16
Track2200
Capacity6ton, 8ton

We offer Farm Trailer Axle.
Agriculture Axle
Product Description:
Description Model No. Capacity(t) Brake(mm) centre distance of brake chamberL4 Axle Tube(mm) centre distance of spring seat L3 Stud P.C.D Track L2(mm) Bearing Total Length L1(mm) Weight(kg) Recommended Wheel
Agriculture axle ZY-A1040 6 300*120 960 Φ108 1560 6*30*1.5 222 2200 75147813 2460 220 5.50F-16
Agriculture axle ZY-A1041 8 300*120 960 Φ121 1560 6*30*1.5 222 2200 75147813 2460 226 5.50F-16
Characteristics of the products as follow:
1) Superior one piece axle tube, strong carrying capacity and high bending strength.
2) The axle head is processed by the method of hardening and heat treatment, it can provide anti- fatigue and durable capability.
3) The brake lining is environment friendly, non-asbestos and long life-expectancy.
4) The bearing is high rotate speed, abrasion resistant and heat resistant.
5) Wheel hub and brake drum use internatonal standard materials of ball iron and grey iron seperately, which has the advantages of over loading capacity, abraion resistant and heat resistant.
6) Key parts are produced by digital equipment, we can produce according to customer's special requirements.
