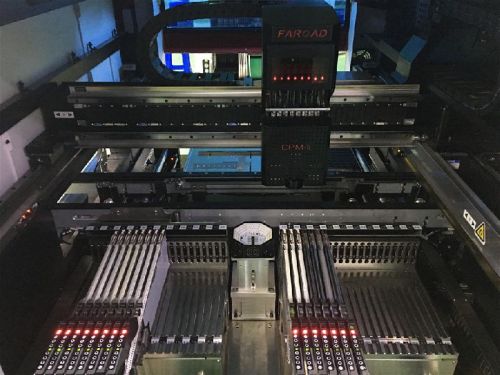

Faroad High Precision Pick and Place Machine

1.The high-rigidity,high-accuracy and high-stability rack
1)Base and Y axis are made by integrated design?X axis uses the high-hardness aluminium alloy and is suppressed into shape by a molding machine.
2)X axis is completed at one time by a large special equipment. Every parts and installation planes of base and Y axis are assembled exactly to ensure high precision.
3)Fast assembling to avoid deformation.
2.High-speed, high-precision and long-life XY axis
1)Rolling guides used on XY axis are imported from Japanese brand THK, which has low noise and high precision.
2)The linear motors used on XY axis are made by Japanese company Sanyo, which is exclusively used in Pick&&Place machine.
3)The grating ruler with high resolution is imported from Britain company Renishaw, which ensures the high precision of XY axis motion.
3.The high-speed and high-precision head
1)The parts and base of head are made by aviation-grade aluminum, which makes the head more stable and reliable.
2)Adapting Japanese micro servo motor and IKO guide rail, which ensures the up-down of Z axis in high-speed, high-accuracy, and high stability.
3)High-precision ball spline ensures the high-accuracy of rotation.
4.The recognition camera with excellent performance
1)Using Germany BASLER linear scan camera.
2)The Ring-shaped light source is made by OSRAM lamp beads that has highlight and high-stability, and lighting comes from its base and 8 sides.
6.Electric feeder with high stability and high speed
1)Complete menu: the size of electric feeder can be from 8mm to 72mm, tube feeder and tray feeder.
2)The feeding speed is in the advanced stage of industry with 20pcs per second.
3)Unique technology of current controllers was employed in machine drives, which ensures the extremely low heating level of electronic feeder.
