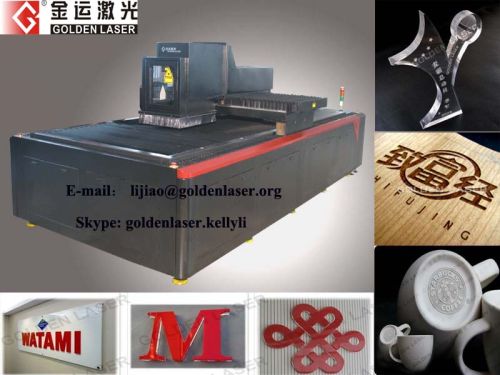

Fast Speed Galvo Laser Engraving Cutting Machine

We are offering fast speed galvo laser engraving cutting machine for acrylic letters numbers.
fast speed galvo laser engraving cutting machine for acrylic letters numbers
jmszjjg-130160/jmszjjg(3d)-130250 dt laser cutting engraving machine for non-metal
brief introduction:
this laser machine combines two different laser functions together. X-y gantry system for large format and high precision cutting; germany galvo system for fast and precise engraving. Two systems only share one laser tube and can switch freely. Ball screw transmission ensures the two systems running stable. Galvanometer scanning system for very fast and large pattern engraving. Coherent or synrad co2 rf metal laser tube produces high quality laser beam, stable power and long working life. Low use-cost, maintenance-free and high efficiency.
highlights specification:
(1). Elegant exterior design. Steel girder welding structure, solid and reliable working table. Large format working area, high speed, high precision and wide range of application.
(2). With the world’s top usa ii-vi laser optic lens. The lens of less energy loss, high reflectivity, strong focusing and durable. Optical losses in the transmission process minimum to avoid the problems of large attenuation of laser cutting power.
(3). This equipment uses south korea patented high speed linear motion guide rail. Rail can be adjusted to ensure the accuracy after some time of movement. Our slider is also imported from korea. The size is adjustable while using.
(4). The key parts use the current international popular and advanced precision ball screw, with professional precision laser heads, it has the features of small kerf, high speed and high precision.
(5). Motion systems select japanese servo motor and drive. And it has advanced speed control system. According to the cutting requirement of curve and straight line, it has the function of automatically adjust the speed, ensuring smooth cutting edges and natural curves. Running stable and fast speed.
(6). This device uses a fully enclosed professional cooling water circulation system to ensure the circulation of water in the laser tube to be clean without dust. It achieves good results to extend the life of the laser tube, effectively reducing the cost of production.
(7). Good air suction systems totally discharge smoke and fume from materials being cut to keep good environment and high precision of the machine.
(8). Off-line control system. There are a variety of input methods, such as usb flash disk, usb cable transmission and cable connection. Easy to use. One computer controls multiple laser machines for cost saving.
(9). For software, all using professional cutting software (independently researched and developed by goldenlaser). It is compatible with cad, bmp, coreldraw, dst, plt and other related software. It combines graphics layout and control output in one. Unique design, friendly interface and easy to use. And you enjoy permanent free upgrades of the software.
application field:
applicable materials: wood, plywood, bamboo, mdf,hdf,fibreboard, balsa, veneer inlays, acrylic, acryl, pmma, perspex, plexiglas, plexiglass, organic glass, abs, double color board, rubber sheet, plastic, industrial plastics (pp, pe, pet, pvc, abs, pa, ps, pc, etc.), paper, corrugated paper, cardboard, pressboard, paperboard, chipboard, thin sheet metal, etc.
applicable industries: advertising industry, advertising signs, advertising letters, metal letters, nameplates, led light guide panels (lgp), plastic industry, printing & packing industry, gifts & crafts, promotional items, plaques, trophies, awards, bangles, badges, tags, decorations, souvenirs, precise ornaments, models, architectural models, furniture marquetry, parquet floors, etc.
model no. jmszjjg-130160 jmszjjg(3d)-130250
laser type co2 rf metal laser tube
laser power 100w / 150w / 200w / 300w / 400w
working area 1300mmx1600mm 1300mmx2500mm
galvo engraving area (one time) 210mmx210mm 400mmx400mm
working table zinc-iron honeycomb working table strip panel working table
processing speed 0-360000mm/min
repeating location accuracy ±0.1mm
motion system off-line servo control system, lead-screw driving
cooling system constant temperature water-chiller
power supply ac220v ± 5% / 50hz
format support ai, bmp, plt, dxf, dst, etc.
working size and laser power can be customed according to requirement.
